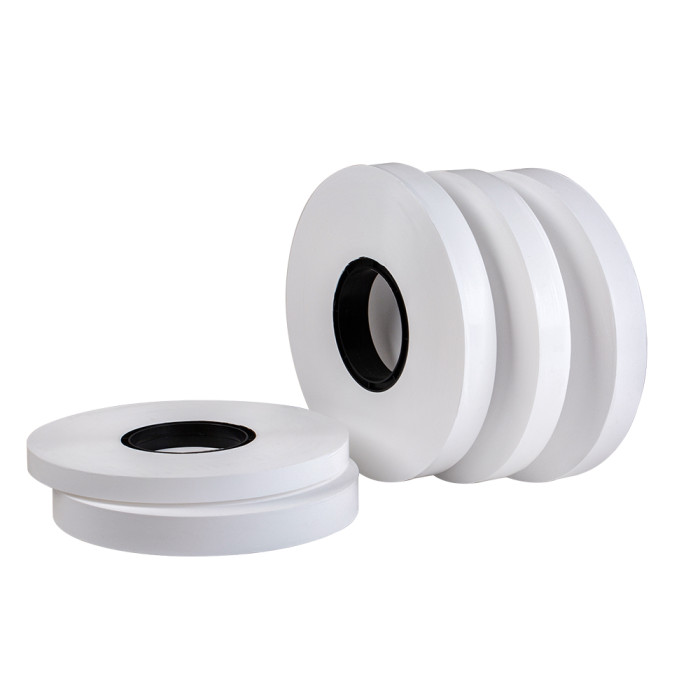

PTFE Film Adhesive Tapes

PTFE Film Adhesive Tapes
PTFE Film Adhesive TapesPTFE Film Adhesive TapesPTFE Film Adhesive TapesPTFE Film Adhesive TapesPTFE Film Adhesive Tapes
CategoriesLow Density PTFE Films
BrandForeverseal PTFE Tapes Manufacturer
ModelFS10-LD
Brand & LogoForeverseal
Busniess typeManufacturer
MaterialPTFE(Polytetrafluorethylene)
Standard density0.50g/cm3 - 0.90g/cm3
Thickness50mm - 254mm
Width5-200mm
FOB portShanghai/Ningbo
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeMay 19,2024
Detail Information
FEATURES

LOW DENSITY (ePTFE) FILM & TAPE

Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.

It's lightsoftflame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.

l  Technical Data for low density unsintered ptfe tape:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
0.50g/cm3 - 0.90g/cm3
     TENSILE STRENGTH         (minimum)
12MPa
         ELONGATION            (minimum)
50%
Production Center
Features & Applications

    ·   High temperature and chemical resistance

 · Flammability resistivity

 ·    High porosity results in superior dielectric properties

    ·    High tensile strengths that support fast wrapping speeds

    ·    Long joint free lengths

    ·    RoHS and REAH compliant

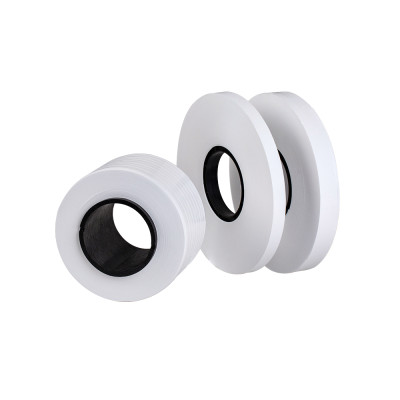

Where do we use our ePTFE FILM

· Wire and cable insulation for extreme chemical and thermal environments

· Binder tape in cable constructions and wire harnesses

· Dielectric material in coaxial cables

· Convoluted hose constructions

· And more
