Home / ForeverSeal Aqua PTFE Thread Seal Tape

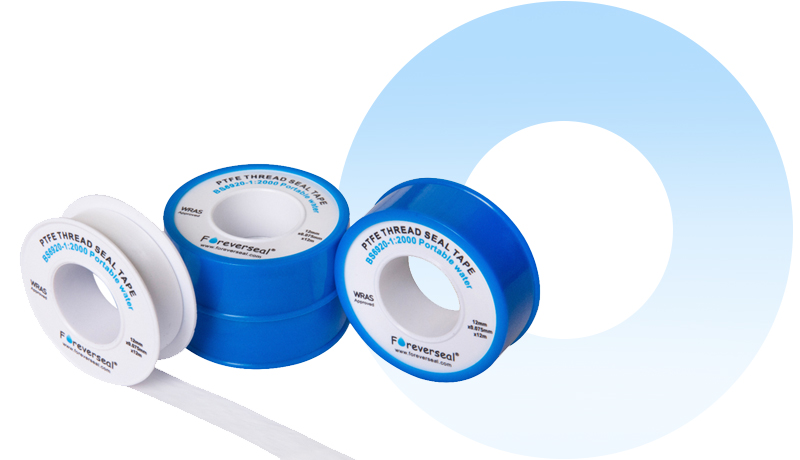

ForeverSeal® Aqua PTFE Thread Seal Tape
Engineered for Potable Water, HVAC & Industrial Water SystemsCertified to NSF International / WRAS / ACSDesigned for Long-Term Leak-Free Water Sealing
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
It is a high-performance engineering-grade sealing material specifically designed for drinking water and industrial water systems.
It is a high-performance engineering-grade sealing material specifically designed for drinking water and industrial water systems.
It's not a "general-purpose PTFE tape," but a PTFE sealing solution specifically optimized for long-term water pressure and temperature cycling and drinking water safety standards. In water systems, leakage is not only a cost issue, but also relates to hygiene and safety, system stability, and long-term maintenance costs.ForeverSeal® Aqua is designed with only one goal: to maintain a stable, zero-leakage seal throughout its entire lifespan.
Low-Leaching & Non-Toxic Formulation
Pure, high-purity PTFE structure ensures no harmful substances are released, maintaining the highest water quality standards.
High-Density Anti-Cold Flow Design
Engineered to maintain thread stability under sustained water pressure, effectively preventing creep and extrusion failure.
Broad Material Compatibility
Universally compatible with various piping materials, including copper, stainless steel, PVC, PPR, and galvanized pipes.
Standardized White Identification
White color-coding for easy field identification and compliance verification, preventing cross-contamination with non-water grade products.
Immediate Sealing & No Curing Time
Eliminates the need for curing or drying; allows for immediate pressure testing post-installation for rapid job-site turnover.
Superior Thermal Cycling Resistance
Designed to withstand extreme temperature fluctuations in HVAC, solar, and complex industrial piping systems.
Exceptional Chemical Stability
Highly resistant to chlorinated water, softened water, and mild chemical media, ensuring long-term durability in harsh environments.
Application Areas
ForeverSeal® Aqua is a high-performance, engineered-grade sealing material designed specifically for drinking water and industrial water systems.
Potable water piping systems

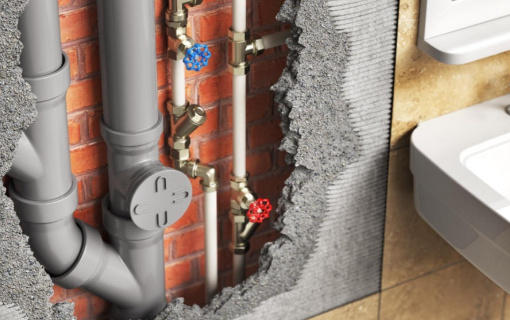

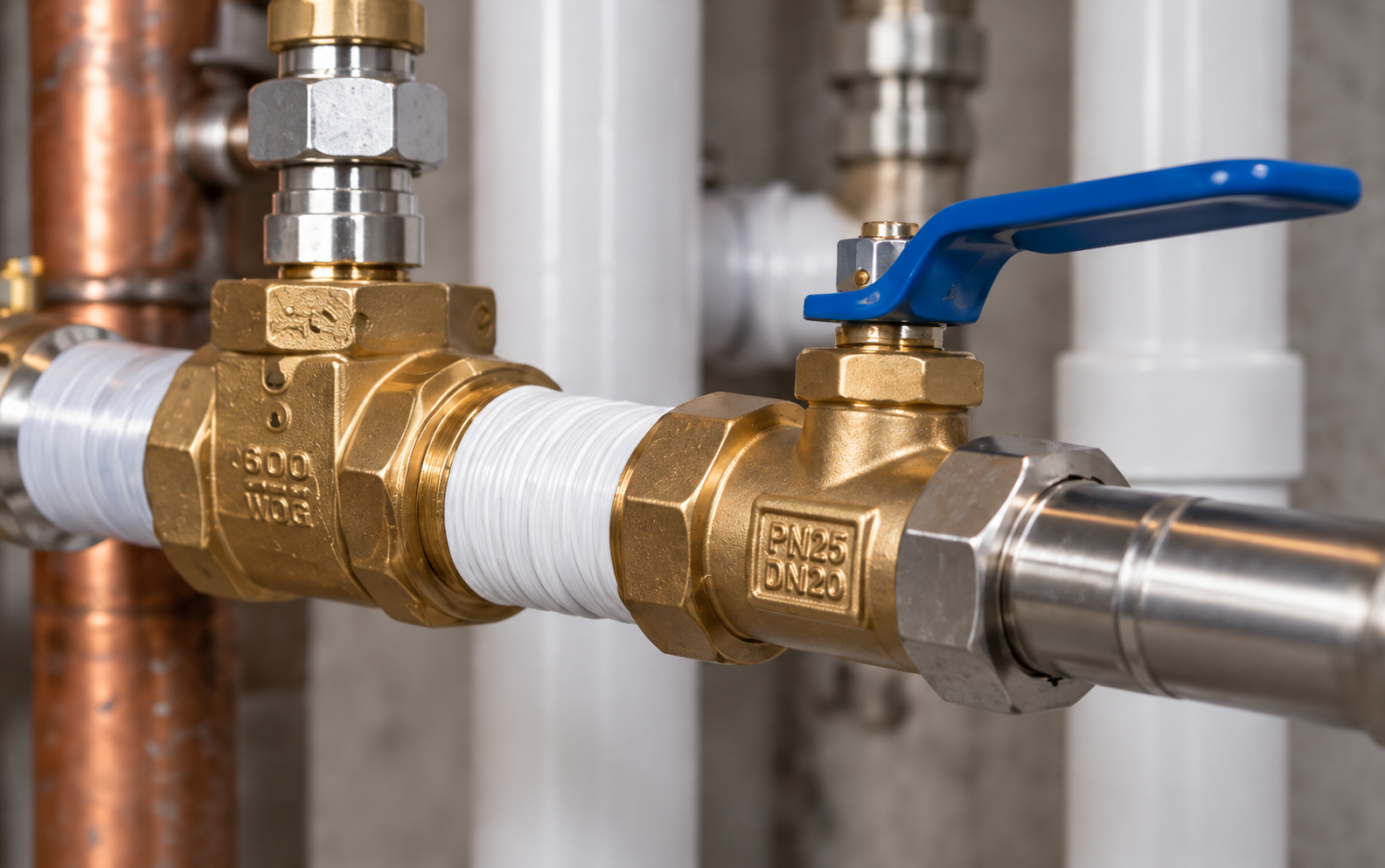

Plumbing & drainage systems

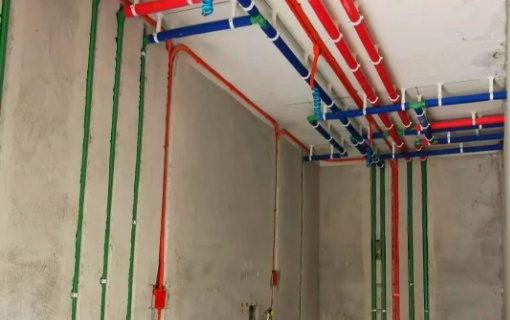

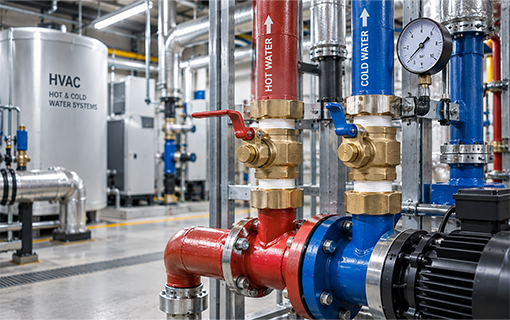

HVAC hot & cold water circulation

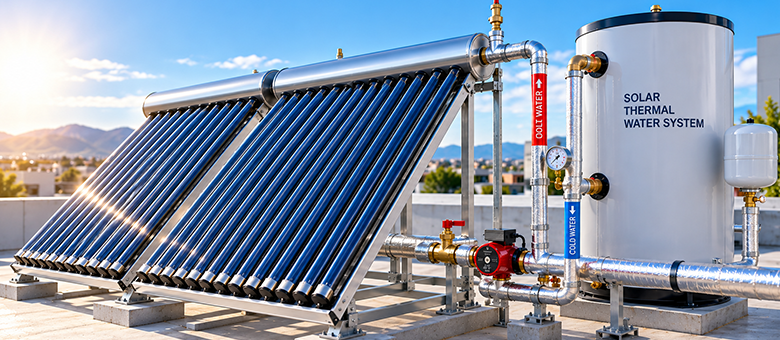

Solar thermal water systems

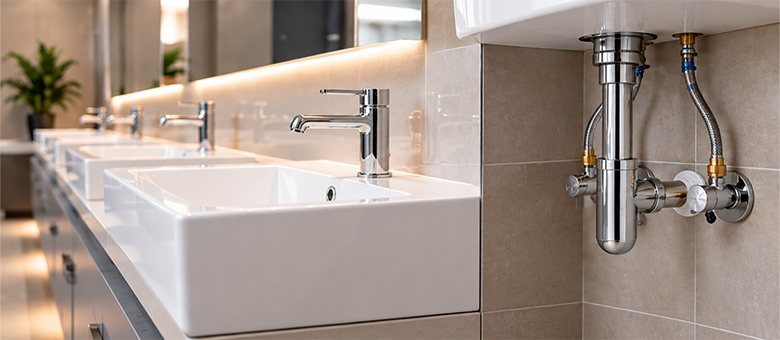

Commercial sanitary & fixture installation
*Not recommended for use in gas pipelines; please choose a gas sealing solution.
Technical Parameters
| Scope |  Aqua (AQ) |  Aqua Pro (AQP) |
|---|---|---|
| Material | 100% Pure PTFE | 100% Pure PTFE |
| Color | White (Water Code) | White (Water Code) |
| Lubricant | None | None |
| Width | 12mm (1/2''), 19mm (3/4''), 25mm (1'') | 12mm (1/2''), 19mm (3/4''), 25mm (1'') |
| Thickness | 0.10 mm ±0.01 | 0.10 mm ±0.01 |
| Density | 0.35~0.4 g/cm³ | 0.6~0.7 g/cm³ |
| Tensile Strength | 8-10 MPa | 8-10 MPa |
| Elongation | ≥25% | ≥25% |
| Maximum Working Pressure | ≤2.0 MPa | ≤2.0 MPa |
| Temperature Range | -190℃ to +260℃ | -190℃ to +260℃ |
| Certifications | WRAS, ACS, CE | WRAS, ACS, CE |
| Explore Aqua | Explore Aqua Pro |
Specifications
| Series | Model | Market | Application | Width (W) | Thickness (T) | Density (D) | Length (L) | |
|---|---|---|---|---|---|---|---|---|
| Aqua | AQ-W12-T10-D4 | Americas | Potable Water Systems | 12mm | 0.10 mm | 0.4g/cm³ | 260 inches (6.6 meters) | Learn More |
| Aqua | AQ-W12-T10-D4 | Americas | Potable Water Systems | 12mm | 0.10 mm | 0.4g/cm³ | 520 inches (13.2 meters) | Learn More |
| Aqua Pro | AQP-W12-T10-D7 | Americas | Industrial Water Systems | 12mm | 0.10 mm | 0.7g/cm³ | 260 inches (6.6 meters) | Learn More |
| Aqua Pro | AQP-W12-T10-D7 | Americas | Industrial Water Systems | 12mm | 0.10 mm | 0.7g/cm³ | 520 inches (13.2 meters) | Learn More |
| Aqua | AQ-W12-T10-D35 | Europe/Southeast Asia | Potable Water Systems | 12mm | 0.10 mm | 0.35g/cm³ | 10 meters | Learn More |
| Aqua Pro | AQP-W12-T10-D6 | Europe/Southeast Asia | Industrial Water Systems | 12mm | 0.10 mm | 0.6g/cm³ | 10 meters | Learn More |
Why ForeverSeal® Aqua ≠ Regular PTFE
It is not a "general-purpose raw material tape", but a PTFE sealing solution specifically optimized for long-term water pressure, temperature cycling and drinking water safety standards.
| Comparison Projects | Ordinary PTFE Tape | ForeverSeal® Aqua |
|---|---|---|
| ✖Low density, prone to extrusion and deformation. | ✔Moderate thickness & density, superior compression stability. |
| ✖Low to medium performance. | ✔Stable performance under sustained water pressure. |
| ✖No official certification. | ✔NSF International / WRAS / ACS Certified. |
| ✖Inconsistent formulation. | ✔Engineering-grade 100% pure PTFE. |
| ✖Low to moderate durability. | ✔10–20 year design service life. |

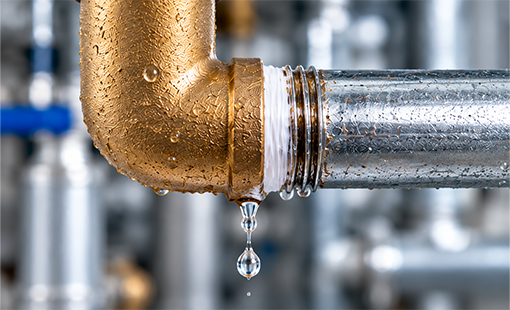

*Most water system leaks are not due to construction issues, but rather to incorrect material selection.
Long-Term Sealing Stability
- Superior Cold Flow Resistance
- Long-Term Pressure Sealing Stability
- Thermal Cycling Stability
- Potable Water Safety (Migration Tested)
- Anti-Aging & Chemical Resistance
- Anti-Vibration & Mechanical Stability
Working Principle

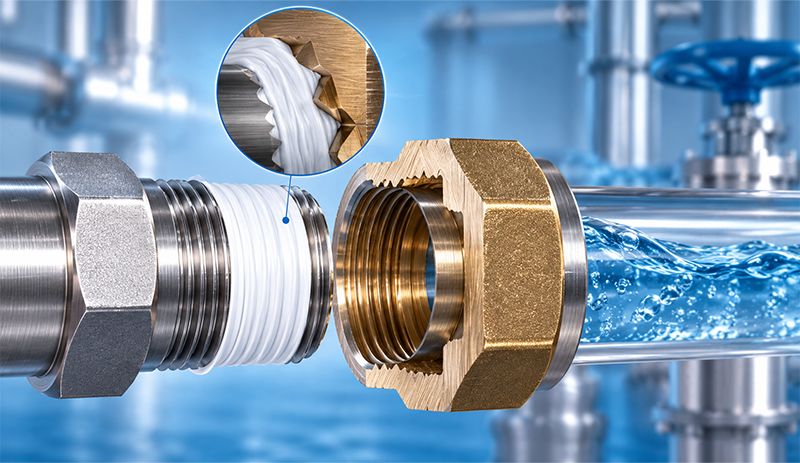

ForeverSeal® PTFE Thread Seal Tape creates a tight mechanical seal at threaded gas connections.
When used correctly—starting from the root of the thread and maintaining a steady tension—the specially formulated polytetrafluoroethylene (PTFE) expands to fill tiny gaps, creating a leak-proof connection between the male and female threads.

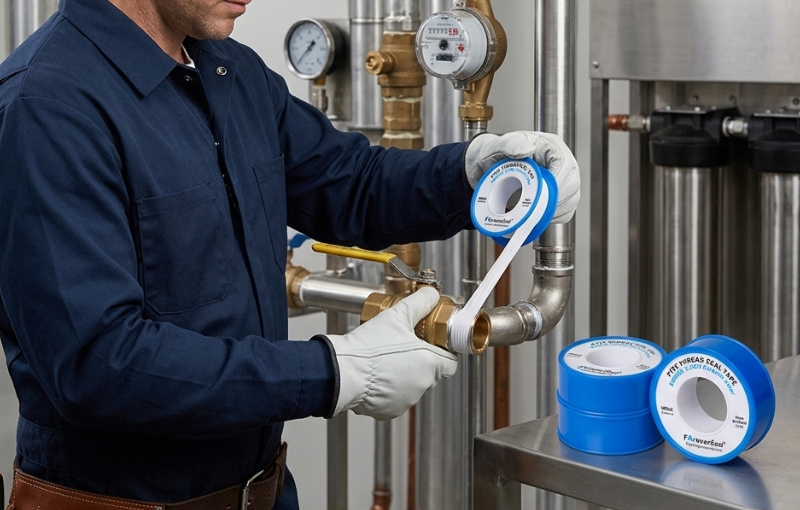

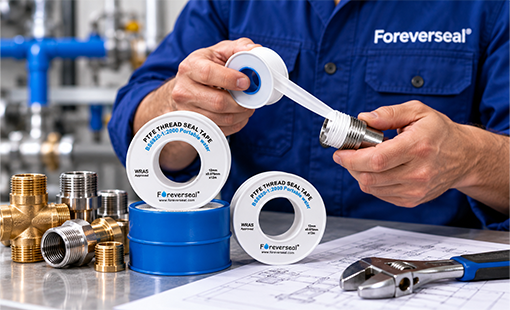

Installation Steps:
- 01
- Clean the threads.
- 02
- Wind clockwise (tightening direction).
- 03
- Begin winding from the second turn.
- 04
- Tighten and overlap the winding as needed; the number of turns depends on the diameter (see specification guide).
- 05
- Compact the winding.
- 06
- Install immediately and tighten.
- 07
- Perform a leak test
In water systems, long-term stability is far more critical than just "initial sealing."
ForeverSeal® Aqua is not designed for mere functionality.
Our goal is to ensure reliable sealing performance throughout a 10-to-20-year service life.
Frequently Asked Questions
- Which industries commonly use Pipe Thread Sealant?Pipe Thread Sealant is widely used in plumbing, HVAC, gas distribution, hydraulic systems, petrochemical plants, water treatment facilities, and industrial manufacturing.
- How much pressure can Pipe Thread Sealant withstand?Depending on the formulation and application, high-performance thread sealants can withstand pressures up to 69 MPa (10,000 psi).
- What materials can Pipe Thread Sealant be used on?It is suitable for most metal threaded fittings, including steel, stainless steel, brass, copper, and aluminum.
- Can Pipe Thread Sealant replace PTFE Tape?Yes. In many industrial applications, Pipe Thread Sealant can replace PTFE Tape and provide a more reliable and durable seal.
- What is the difference between Pipe Thread Sealant and PTFE Tape?PTFE Tape mainly fills thread gaps mechanically, while Pipe Thread Sealant forms a chemical seal after curing, providing higher pressure resistance, better vibration resistance, and long-term sealing performance.
