Excellent Wrapping Performance
Excellent flexibility and conformability support high-speed wrapping and close adhesion around conductors and insulation structures.
Always On Duty
Engineered Like a Soldier. Tested Like a Guardian.
Home / Sunfilm Unsintered PTFE Wrapping Tape
Sunfilm® Unsintered PTFE Wrapping Tape
Engineered for Aerospace Wiring, High-Temperature Insulation and High-Reliability Electrical Systems
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
Sunfilm® Unsintered PTFE Wrapping Tape
Sunfilm® Unsintered PTFE Wrapping Tape
Engineered for Aerospace Wiring, High-Temperature Insulation and High-Reliability Electrical Systems

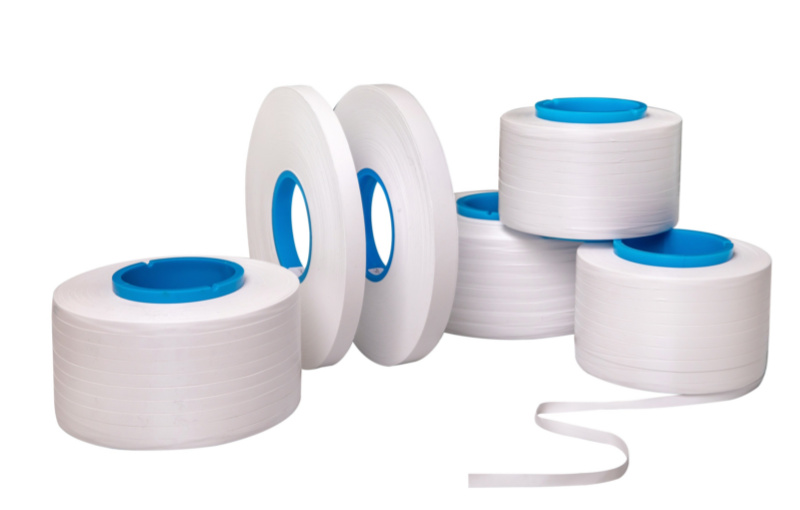

Sunfilm® Unsintered PTFE Wrapping Tape is manufactured from 100% PTFE resin through a precision calendering process without sintering. It combines excellent flexibility, stable electrical insulation performance, high dielectric strength and outstanding resistance to extreme temperatures.

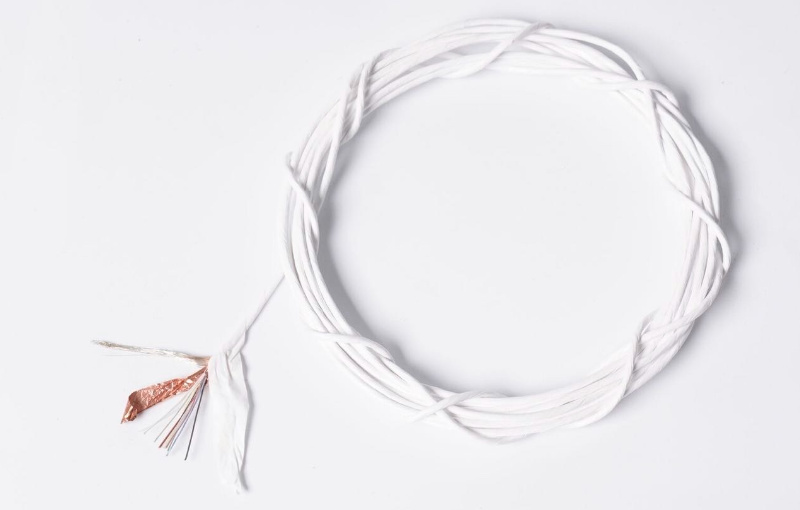

The tape is primarily used as an insulation wrapping layer, structural reinforcement layer and protective layer in aerospace wiring, high-temperature cables, instrumentation cables and other high-reliability electrical systems. It provides long-term insulation protection and mechanical stability for mission-critical wiring applications.
Sunfilm® Unsintered PTFE Has One Clear Purpose:
Reliable Insulation for Mission-Critical Wiring Systems
Reliable Electrical Insulation
Stable dielectric properties and high dielectric strength help ensure long-term electrical reliability.
Wide Operating Temperature Range
Maintains stable insulation performance across temperatures from −190°C to +260°C.
Structural Reinforcement
Functions as both an insulation and reinforcement layer, improving the mechanical stability of cable structures.
Excellent Chemical Resistance
Resistant to fuels, lubricants, hydraulic fluids and a wide range of aggressive chemical media.
Long-Term Durability
Provides stable mechanical and electrical performance for long-term operation in demanding environments.
Application
Sunfilm® Unsintered PTFE Provides Reliable Insulation for Mission-Critical Wiring Systems

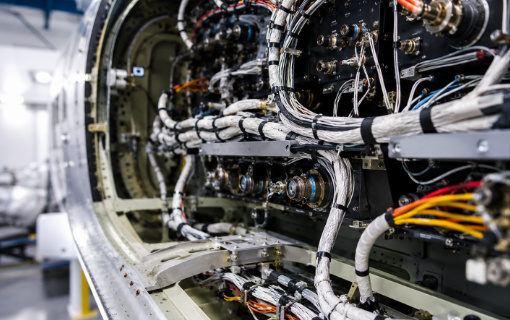

Aerospace Wiring Systems

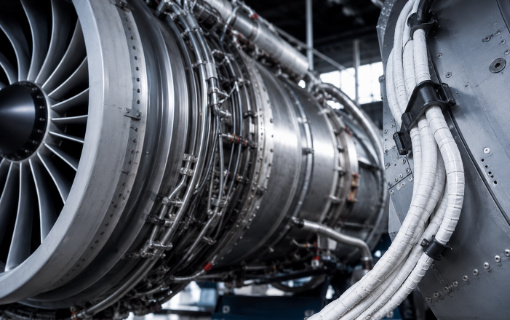

High-Temperature Cable Systems

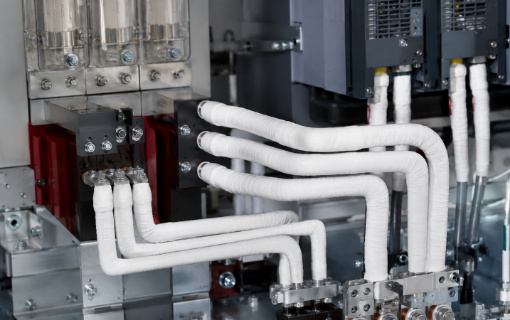

Electrical Insulation Systems

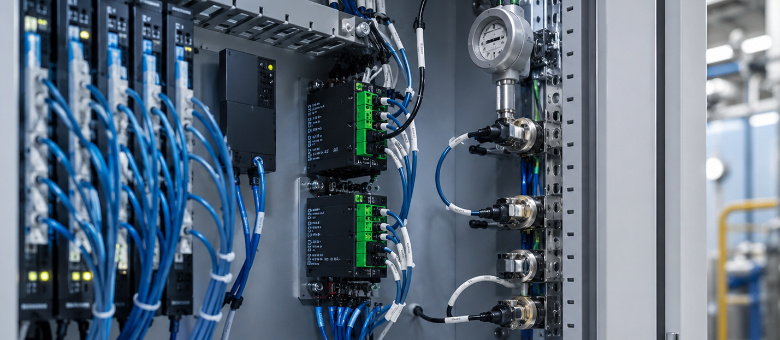

Instrumentation and Control Cables
Defense and Military Electronics
*Not recommended for use in plastic threaded connections, potable water systems, ultra-high-purity oxygen systems, or systems requiring immediate pressurization.
Technical Parameters
| Scope | Typical Value | Unit | Tolerance | Test Standard |
|---|---|---|---|---|
| Material | 100% PTFE | — | — | — |
| Color | Natural | — | — | Visual Inspection |
| Width | 3–150 | mm | ±0.3 | GB/T 6673 |
| Thickness | 0.051–0.254 | mm | ±0.003 (<0.152) ±0.005 (≥0.152) | GB/T 6672 |
| Density | 1.6 | g/cm³ | ±0.05 | GB/T 1033.1 |
| Tensile Strength | 8–25 | MPa | — | GB/T 1040.3 |
| Elongation at Break | ≥50 | % | — | GB/T 1040.3 |
| Dielectric Constant | 1.8 | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Dissipation Factor (1 MHz) | ≤0.001* | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Strength | 40–60 | kV/mm | — | GB/T 1408.1 |
| Working Temperature | −190 to +260 | °C | — | GB/T 1409 |
| Chemical Resistance | Excellent | — | — | Inherent PTFE Properties |
Specifications
| Series | Type | Market | Application | |
|---|---|---|---|---|
| Sunfilm® Unsintered PTFE | High-Density Wrapping Film | Global | Aerospace wiring, high-temperature cables and high-reliability electrical insulation systems |
Why Choose ForeverSeal® Pipe Thread Sealant
ForeverSeal® Pipe Thread Sealant is a sealed sealing product required in High pressure fields - Under harsh working conditions, it can make up for the deficiencies of PTFE tape.
| Comparison | Conventional Cable Wrapping Material | Sunfilm® Unsintered PTFE |
|---|---|---|
| ✖Limited flexibility on complex structures | ✔Flexible and highly conformable |
| ✖Depends on material type | ✔40–60 kV/mm |
| ✖Limited operating range | ✔−190°C to +260°C |
| ✖Limited mechanical support | ✔Improves cable structural integrity |
| ✖Performance varies by material | ✔Excellent resistance |
| ✖May degrade under harsh conditions | ✔Stable and durable |
