Sunfilm® Skived PTFE Film
Delivering Reliable Electrical Insulation and Long-Term Protection.
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features

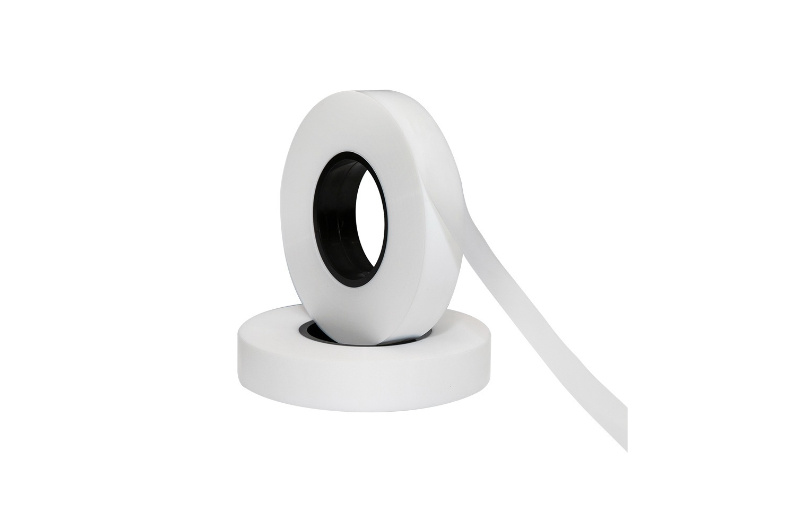

Sunfilm® Skived PTFE Film
Sunfilm® Skived PTFE Film
Delivering Reliable Electrical Insulation and Long-Term Protection
Sunfilm® Skived PTFE Film is manufactured from 100% virgin suspension-grade PTFE resin through molding, sintering, skiving and calendering processes.Its dense and non-porous structure provides outstanding electrical insulation, high dielectric strength, excellent dimensional stability, low friction and superior resistance to chemicals and extreme temperatures.The film is widely used in electrical insulation, wire and cable protection, semiconductor equipment, industrial sealing and other demanding applications requiring long-term electrical and mechanical reliability.
Sunfilm® Skived PTFE Film Has One Clear Purpose:
Reliable Electrical Insulation, Enhanced Mechanical Protection and Longer Service Life
High Dielectric Strength
Withstands high electrical stress and helps reduce the risk of dielectric breakdown in critical insulation systems.
Dense PTFE Structure
The dense, non-porous structure provides excellent dimensional stability, mechanical strength and long-term durability.
Excellent Chemical Resistance
Resistant to fuels, lubricants, hydraulic fluids, acids, alkalis and most industrial chemicals.
Wear Resistance and Low Friction
Excellent abrasion resistance and low friction help protect cables, components and contact surfaces from wear.
Long-Term Reliability
Maintains stable mechanical and electrical performance across temperatures from −190°C to +260°C.
Application
Sunfilm® Unsintered PTFE Provides Reliable Insulation for Mission-Critical Wiring Systems

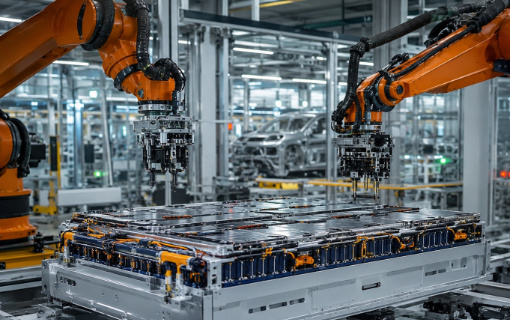

New Energy and Industrial Automation

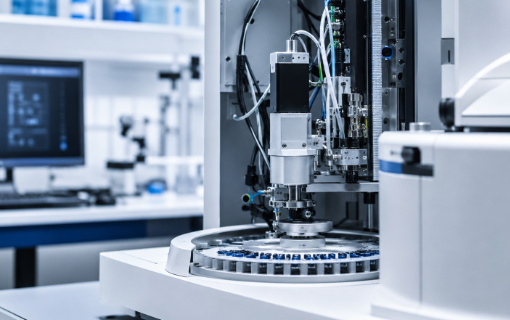

Precision Instruments and Medical Equipment

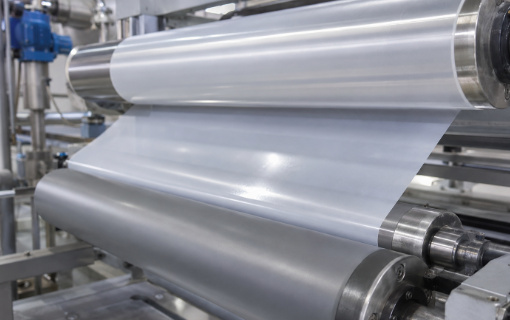

Industrial Sealing and Protection

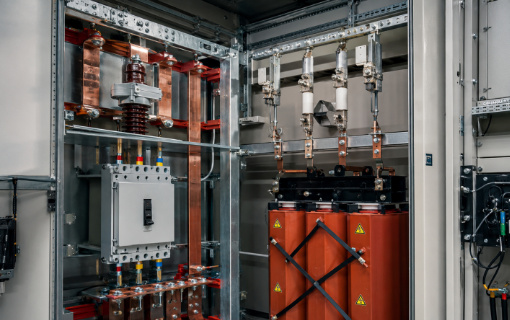

Electrical Insulation Systems

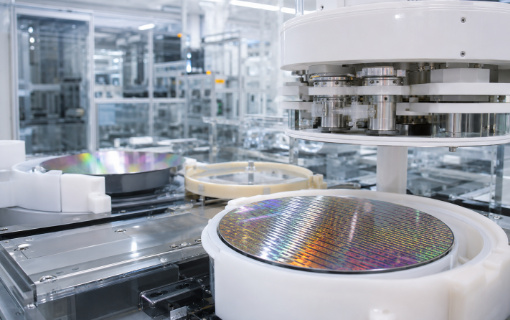

Electronics and Semiconductor Systems

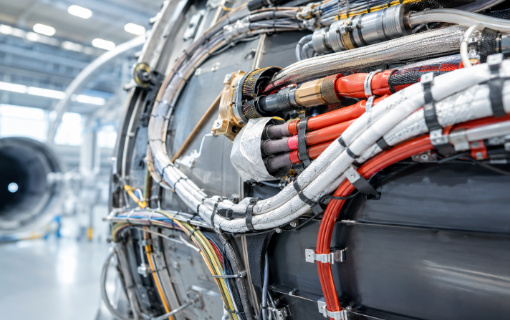

High-Performance Wire and Cable Systems
Technical Parameters
| Scope | Typical Value | Unit | Tolerance | Test Standard |
|---|---|---|---|---|
| Material | 100% PTFE | — | — | — |
| Color | Natural | — | — | Visual Inspection |
| Width | 2–100 | mm | ±0.3 | GB/T 6673 |
| Thickness | 0.03–3.0 | mm | ±0.003 (<0.152) ±0.005 (≥0.152) | GB/T 6672 |
| Density | 2.15–2.20 | g/cm³ | ±0.05 | GB/T 1033.1 |
| Tensile Strength | ≥35 | MPa | — | GB/T 1040.3 |
| Elongation at Break | ≥60 | % | — | GB/T 1040.3 |
| Dielectric Constant | 2.1 | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Dissipation Factor (1 MHz) | ≤0.0003* | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Strength | ≥60 | kV/mm | — | GB/T 1408.1 |
| Working Temperature | −190 to +260 | °C | — | GB/T 1409 |
| Chemical Resistance | Excellent | — | — | Inherent PTFE Properties |
Specifications
| Series | Type | Market | Application | |
|---|---|---|---|---|
| Sunfilm® Skived PTFE Film | Dense Electrical Insulation Film | Global | Electrical insulation, wire and cable protection, semiconductor equipment and industrial protection systems |
Why Choose Sunfilm® Skived PTFE Film
| Comparison | Conventional Insulation Film | Sunfilm® Skived PTFE Film |
|---|---|---|
| ✖Performance varies by material | ✔Stable and reliable |
| ✖Limited under high electrical stress | ✔≥60 kV/mm |
| ✖Limited wear resistance | ✔Dense and wear-resistant |
| ✖Limited operating range | ✔−190°C to +260°C |
| ✖May degrade in aggressive media | ✔Excellent resistance |
| ✖May age under demanding conditions | ✔Stable and durable |
Related Downloads
Reliable Electrical Insulation, Enhanced Mechanical Protection and Longer Cable Service Life.
