Home / Sunfilm Expanded PTFE Wrapping Tape
Sunfilm® Expanded PTFE Wrapping Tape
Engineered for Aerospace, Defense and High-Frequency Communication SystemsWith a density of only 0.50–0.90 g/cm³, Sunfilm® ePTFE wrapping tape significantly reduces overall cable weight, making it especially suitable for aerospace and mobile communication systems.
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features

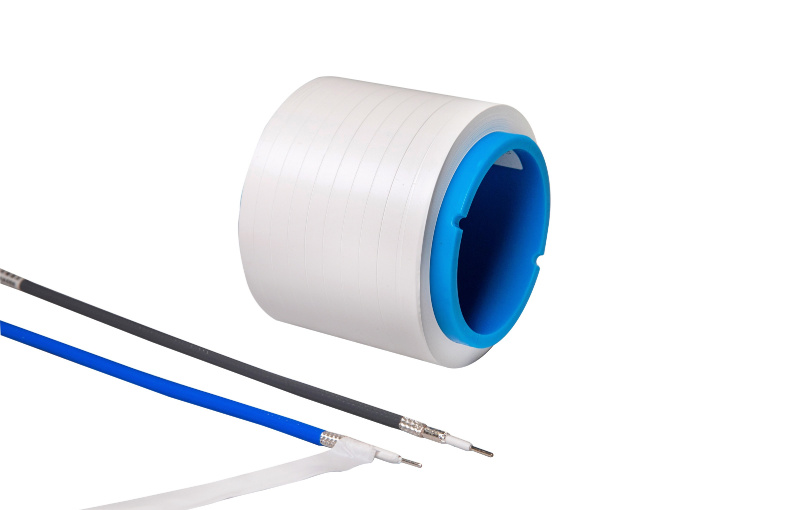

Sunfilm® Expanded PTFE Wrapping Tape
Sunfilm® Expanded PTFE Wrapping Tape
Engineered for Aerospace, Defense and High-Frequency Communication Systems

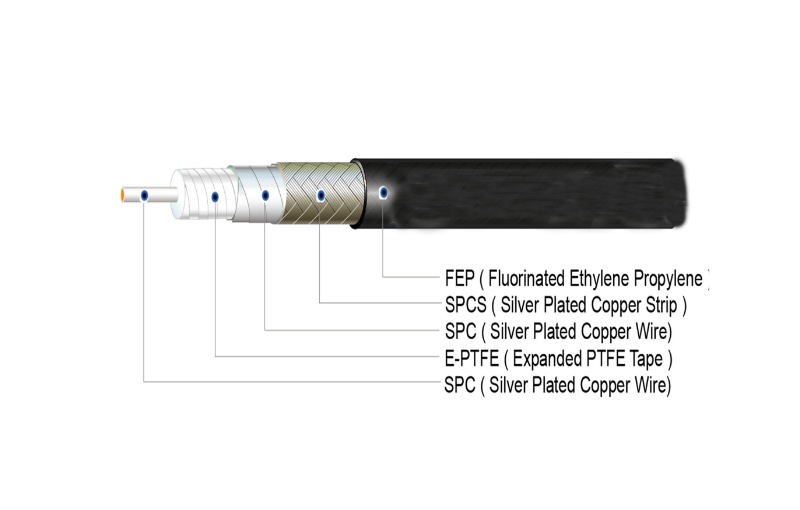

Sunfilm® Expanded PTFE Wrapping Tape is manufactured from 100% expanded polytetrafluoroethylene using a controlled microporous structure. With an ultra-low dielectric constant, extremely low signal loss, lightweight construction, excellent flexibility, and outstanding temperature resistance, it is engineered for aerospace, defense, satellite communications, radar systems, and other mission-critical high-frequency cable applications.
Compared with conventional cable insulation and wrapping materials, Sunfilm® ePTFE wrapping tape helps reduce transmission loss and cable weight while maintaining stable electrical performance across wide temperature ranges.
Sunfilm® Expanded PTFE Wrapping Tape Has One Clear Purpose:
Transmit High-Frequency Signals Farther and More Reliably—While Reducing Cable Weight.
Ultra-Low Dielectric Constant
With a dielectric constant of approximately 1.3–1.4, the material helps reduce signal delay and transmission loss.
Extremely Low Dielectric Loss
A dielectric dissipation factor of ≤0.0005 at 1 MHz supports stable high-frequency transmission and signal integrity.
Lightweight Microporous Structure
With a density of only 0.50–0.90 g/cm³, the tape helps reduce overall cable weight.
Wide Temperature Resistance
Maintains flexibility and stable electrical performance from −190°C to +260°C.
Excellent Environmental Resistance
Provides strong resistance to moisture, chemicals, fuels, oils, solvents, and corrosive media.
Application
Sunfilm® Expanded PTFE Wrapping Tape Is a Core Material for High-Reliability Signal Transmission Systems

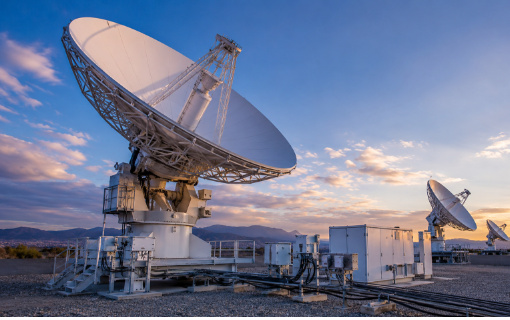

Satellite Communication

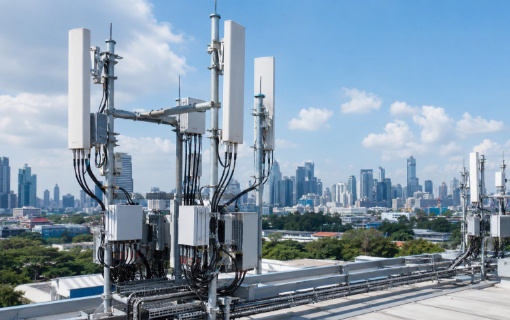

5G Base Stations

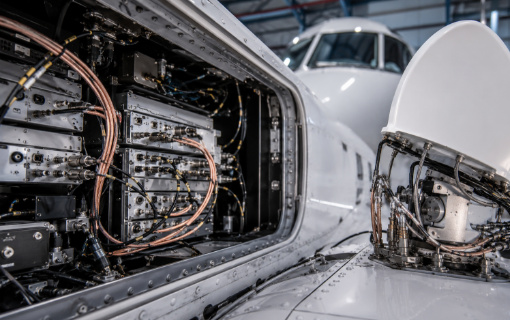

Aerospace Communications

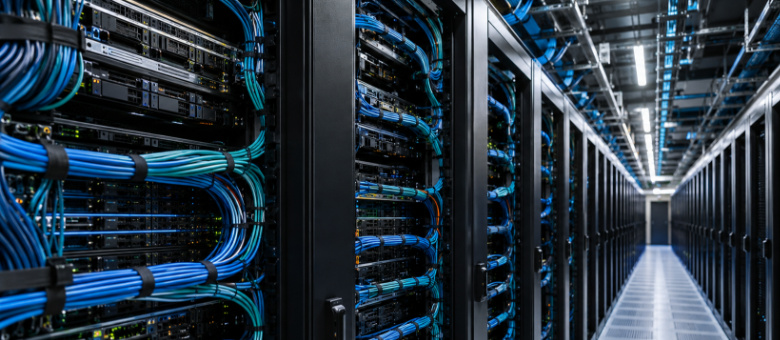

Data Centers

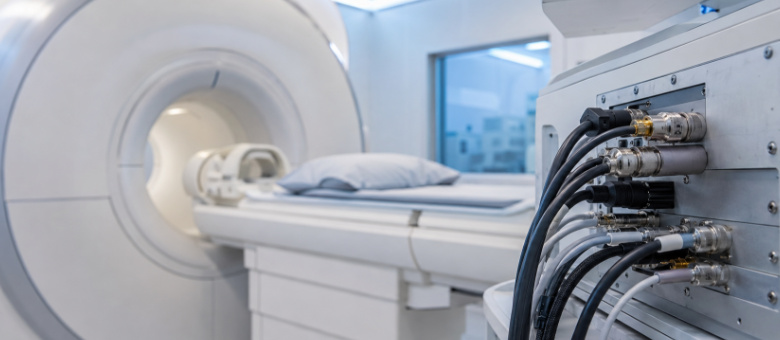

Medical Imaging Systems
*Not recommended for use in plastic threaded connections, potable water systems, ultra-high-purity oxygen systems, or systems requiring immediate pressurization.
Technical Parameters
| Scope | Standard Low-Density Film | High-Strength Low-Density Film | Unit | Tolerance | Test Standard |
|---|---|---|---|---|---|
| Material | 100% PTFE | 100% PTFE | — | — | — |
| Color | Natural | Natural | — | — | Visual Inspection |
| Width | 3–150 | 3–150 | mm | ±0.3 | GB/T 6673 |
| Thickness | 0.051–0.254 | 0.051–0.254 | mm | ±0.003 (<0.152) ±0.005 (≥0.152) | GB/T 6672 |
| Density | 0.50–0.90 | 0.50–0.90 | g/cm³ | ±0.05 | GB/T 1033.1 |
| Tensile Strength | 8–25 | 15–50 | MPa | — | GB/T 1040.3 |
| Elongation at Break | ≥60 | ≥50 | % | — | GB/T 1040.3 |
| Dielectric Constant | 1.3–1.4 | 1.3–1.4 | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Dissipation Factor (1 MHz) | ≤0.0005* | ≤0.0005* | — | — | GB/T 1409 / ASTM D150 |
| Dielectric Strength | 30–50 | 30–50 | kV/mm | — | GB/T 1408.1 |
| Working Temperature | -190℃ to +260℃ | -190℃ to +260℃ | ℃ | — | GB/T 1409 |
| Chemical Resistance | Excellent | Excellent | — | — | Inherent PTFE Properties |
Specifications
| Series | Type | Market | Application | |
|---|---|---|---|---|
| Sunfilm® Expanded PTFE | Standard Low-Density Film | Global | Aerospace, RF, microwave, coaxial, and high-frequency communication cables | |
| Sunfilm® Expanded PTFE | High-Strength Low-Density Film | Global | High-strength cable wrapping for aerospace, defense, and mission-critical signal systems |
Related Downloads
Enable high-frequency signals to travel further and more stably, while making the cable lighter.
