Oxygen-Service Compatible
Engineered with low-reactivity materials to minimize oxidation risks and ensure absolute safety in oxygen-enriched environments.
Always On Duty
Engineered Like a Soldier. Tested Like a Guardian.
Home / ForeverSeal UltraGas PTFE Thread Seal Tape

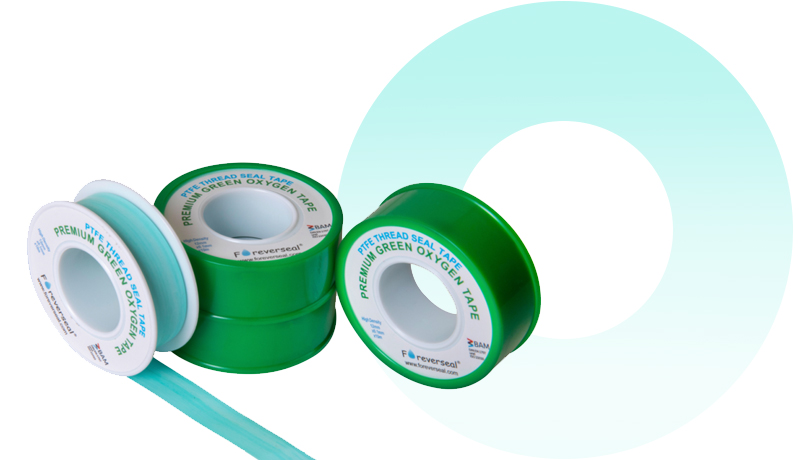

ForeverSeal® UltraGas PTFE Thread Seal Tape
Engineered for Oxygen, High-Purity & Critical Gas SystemsCertified for Oxygen Compatibility & Ultra-Low Contamination EnvironmentsDesigned for Zero-Contamination, Zero-Residue Gas Sealing
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
Engineering-grade PTFE thread seal solutions specifically developed for oxygen, high-purity gas, and sensitive industrial gas systems.
Engineering-grade PTFE thread seal solutions specifically developed for oxygen, high-purity gas, and sensitive industrial gas systems.
It's not an "upgraded version of PTFE tape," but a completely independently designed: low-contamination/oil-free/non-reactive/high-purity compatible sealing system. In oxygen and high-purity gas environments, even the slightest contamination can lead to: combustion risks (oxygen systems), decreased product purity (semiconductor/laboratory), and process failure (pharmaceutical/analytical equipment).ForeverSeal® UltraGas has only one goal: to achieve absolutely reliable seals in extremely clean and high-risk environments.
Oil-Free & Residue-Free Formulation
Strictly free of grease, silicone oils, and additives. Guarantees 100% contaminant-free performance for critical high-pressure applications.
Standardized Green Identification
Industry-standard green color-coding ensures rapid field identification, preventing cross-contamination with incompatible media.
BAM Certified Safety
Rigorously tested and certified by BAM for oxygen service, providing validated peace of mind for high-pressure safety systems.
Ultra-Low Outgassing Design
Specifically formulated to minimize volatile organic compound (VOC) release, making it the ideal solution for vacuum and sensitive analytical systems.
Application
ForeverSeal® UltraGas is designed for high-risk, high-purity gas systems.

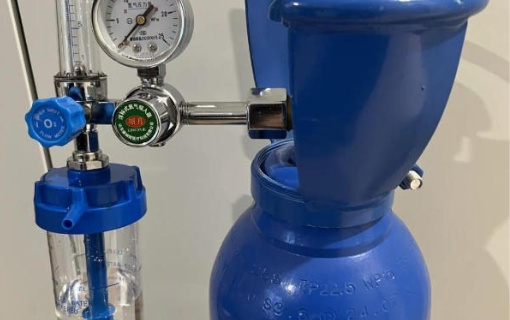

Medical Oxygen Systems

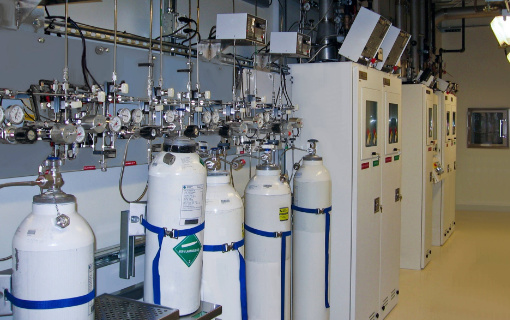

Semiconductor Manufacturing Gas Lines

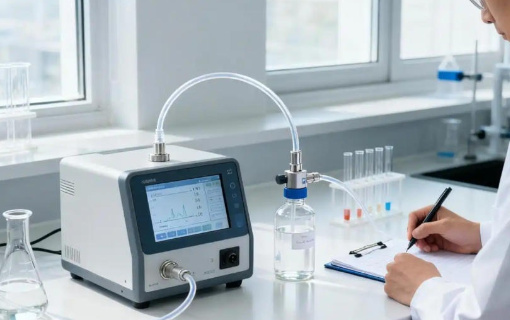

Laboratory Gas Analysis Systems

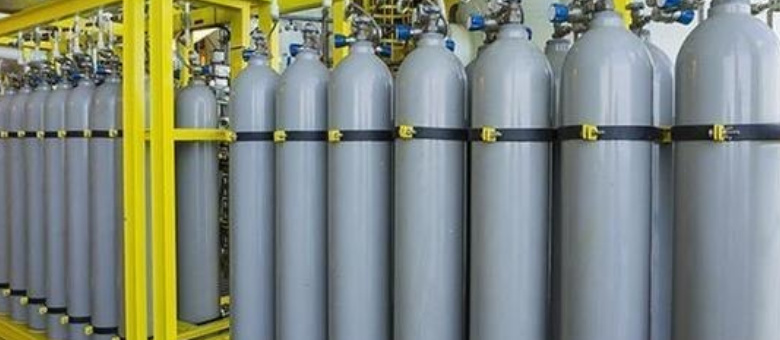

High-Purity N2 / Ar / He Systems

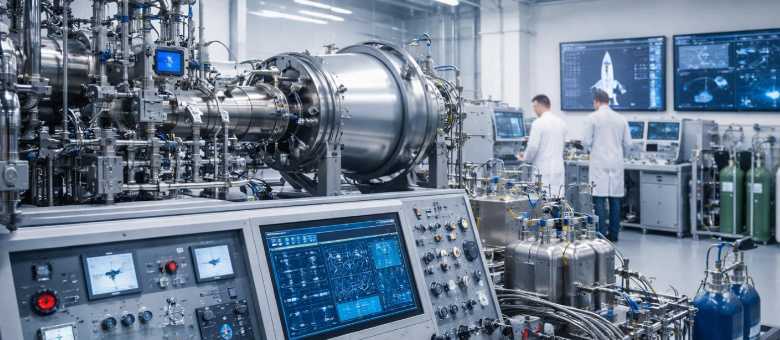

Aerospace Gas Testing Systems
*Not recommended for use in gas pipelines; please choose a gas sealing solution.
Technical Parameters
| Scope | UltraGas (UG) |
|---|---|
| Material | Min. 99% PTFE, Max. 1% Pigment |
| Color | Green (Oxygen Code) |
| Lubricant | None |
| Width | 12mm (1/2''), 19mm (3/4''), 25mm (1'') |
| Thickness | 0.10 mm ±0.01 |
| Density | 1.0 g/cm³ |
| Tensile Strength | 10-17 MPa |
| Elongation | ≥50% |
| Maximum Working Pressure | ≤2.0 MPa |
| Temperature Range | -190℃ to +260℃ |
| Gas Compatibility | Oxygen, Nitrogen, Argon, Helium |
| Certifications | BAM, DIN EN 1797 and ISO 21010 |
Specifications
| Series | Model | Market | Application | Width (W) | Thickness (T) | Density (D) | Length (L) | |
|---|---|---|---|---|---|---|---|---|
| UltraGas | UG-W12-T10-D10 | Global | Oxygen, High Purity Gas | 12mm | 0.10mm | 1.0g/cm³ | 480 inches (12 meters) | Learn More |
Why ForeverSeal® UltraGas ≠ Regular PTFE
ForeverSeal® UltraGas is more than just “thicker tape” – it is specially designed to exhibit different properties under gas pressure.
| Comparison Projects | Ordinary PTFE Tape | ForeverSeal® UltraGas |
|---|---|---|
| ✖Uncontrollable | ✔Oxygen-compatible design |
| ✖Risk present | ✔Zero grease |
| ✖Unstable | ✔≥99% PTFE |
| ✖High | ✔Ultra-low particle |
| ✖Industrial grade | ✔Cleanroom grade |
| ✖Not recommended | ✔Dedicated design |
*In high-purity gas systems, "contamination" is more dangerous than "leakage".
Long-Term Sealing Stability
- Oxygen Service Evaluation
- High-Pressure Oxygen Aging Test
- Low Outgassing Test
- High-Purity Gas Compatibility Test
- Particle Release Control Test
- Long-Term Sealing Stability Test
- Thermal Cycling & Pressure Stability Test
Working Principle
ForeverSeal® PTFE Thread Seal Tape creates a tight mechanical seal at threaded gas connections.
When used correctly—starting from the root of the thread and maintaining a steady tension—the specially formulated polytetrafluoroethylene (PTFE) expands to fill tiny gaps, creating a leak-proof connection between the male and female threads.
Installation Steps:
- 01
- Clean the threads.
- 02
- Wind clockwise (tightening direction).
- 03
- Begin winding from the second turn.
- 04
- Tighten and overlap the winding as needed; the number of turns depends on the diameter (see specification guide).
- 05
- Compact the winding.
- 06
- Install immediately and tighten.
- 07
- Perform a leak test
In high-purity gas systems, system failure is often due to contamination rather than leakage.
The design logic of UltraGas is:
- Zero introduction of migratory substances; no impact on gas purity.
- Preservation of the process environment; no long-term contamination risk.
Frequently Asked Questions
- Which industries commonly use Pipe Thread Sealant?Pipe Thread Sealant is widely used in plumbing, HVAC, gas distribution, hydraulic systems, petrochemical plants, water treatment facilities, and industrial manufacturing.
- How much pressure can Pipe Thread Sealant withstand?Depending on the formulation and application, high-performance thread sealants can withstand pressures up to 69 MPa (10,000 psi).
- What materials can Pipe Thread Sealant be used on?It is suitable for most metal threaded fittings, including steel, stainless steel, brass, copper, and aluminum.
- Can Pipe Thread Sealant replace PTFE Tape?Yes. In many industrial applications, Pipe Thread Sealant can replace PTFE Tape and provide a more reliable and durable seal.
- What is the difference between Pipe Thread Sealant and PTFE Tape?PTFE Tape mainly fills thread gaps mechanically, while Pipe Thread Sealant forms a chemical seal after curing, providing higher pressure resistance, better vibration resistance, and long-term sealing performance.
Guide
Why choose ForeverSeal® GasSafe?
Because gas systems cannot tolerate any failures. ForeverSeal® GasSafe is designed specifically for gas pipeline applications, not a modification of generic PTFE tape. From material density and thickness to color-coded compliance and controlled manufacturing, every design parameter revolves around one goal: achieving a long-lasting, easily inspectable gas seal.
