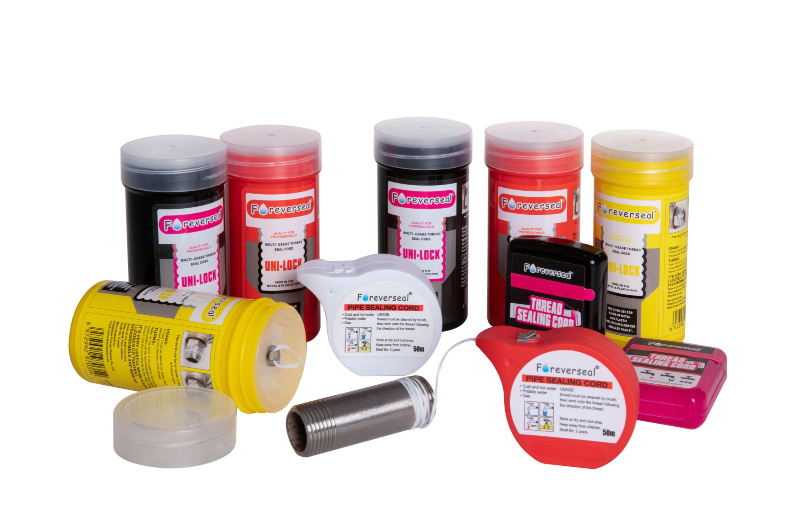

ForeverSeal® Thread Sealing Cord
A high-performance sealing cord manufactured from specially engineered polyfiber material and coated with advanced sealing compounds. It provides faster installation, improved sealing performance, and easier adjustment during assembly
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
ForeverSeal® Thread Sealing Cord
ForeverSeal® Thread Sealing Cord
ForeverSeal® Thread Sealing Cord is a high-performance thread sealing product made from advanced polyfiber material and coated with a specially formulated sealing compound. Designed for both metal and plastic threaded connections, it provides a fast and reliable seal without requiring any curing time.Compared with traditional PTFE tape, ForeverSeal® Thread Sealing Cord is faster to install, delivers superior sealing performance, and allows threaded connections to be repositioned after installation without compromising the seal. It is an ideal solution for water supply and drainage systems, gas lines, compressed air systems, and industrial piping applications.
ForeverSeal® Thread Sealing Cord Has One Clear Purpose: Faster Installation. More Reliable Sealing.
ForeverSeal® Thread Sealing Cord Has One Clear Purpose: Faster Installation. More Reliable Sealing.

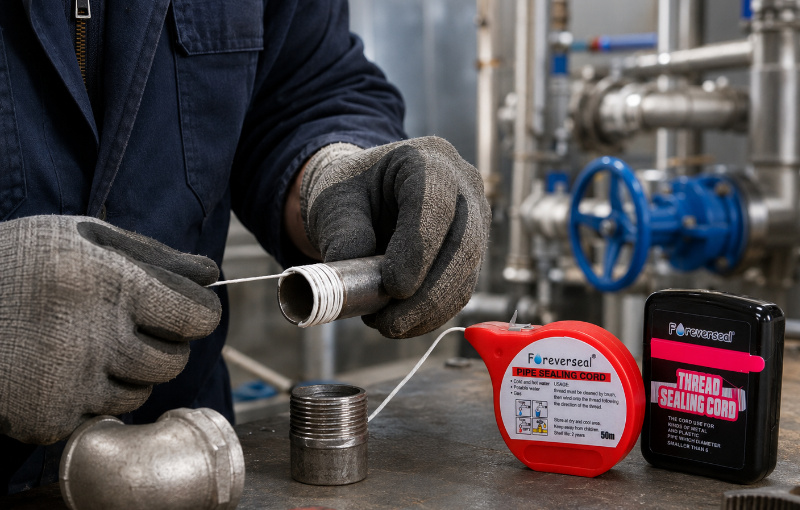

Fast and Easy Installation
Simply wrap the sealing cord around the thread in the tightening direction and assemble the connection. No special tools or professional training are required.
Adjustable After Installation
Threaded fittings can be slightly repositioned or turned back after installation without affecting sealing performance.
Suitable for Metal and Plastic Threads
Compatible with a wide range of threaded materials and suitable for various piping systems.
Excellent Pressure Resistance
Provides long-lasting and reliable sealing protection, even under high-pressure operating conditions.
Clean and Efficient Application
Unlike traditional PTFE tape, it does not tear, shred, flake, or create unnecessary material waste during installation.
Easy Disassembly and Maintenance
Connections can be easily disassembled for inspection or maintenance without damaging the threads.
Application
ForeverSeal® Thread Sealing Cord is designed for a quick installation experience and greater flexibility during application.

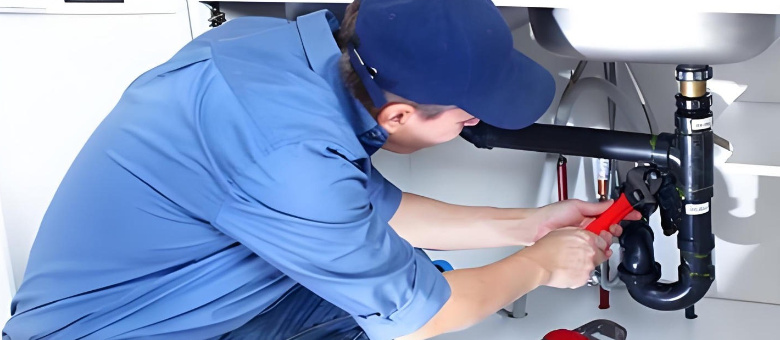

Water Supply and Drainage Systems

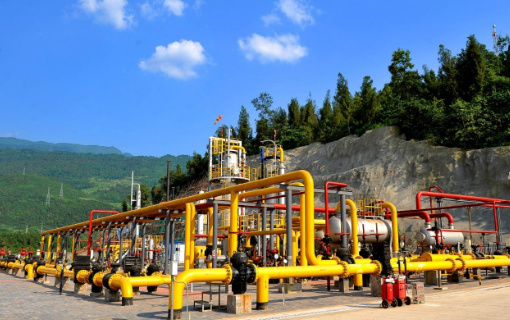

Gas Systems

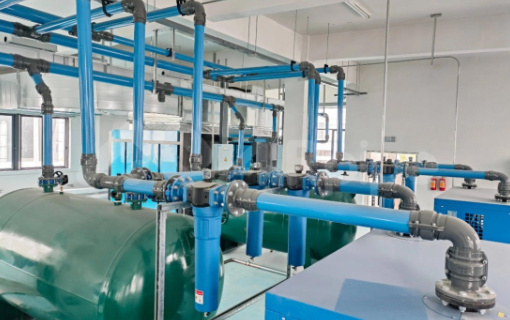

Compressed Air Systems

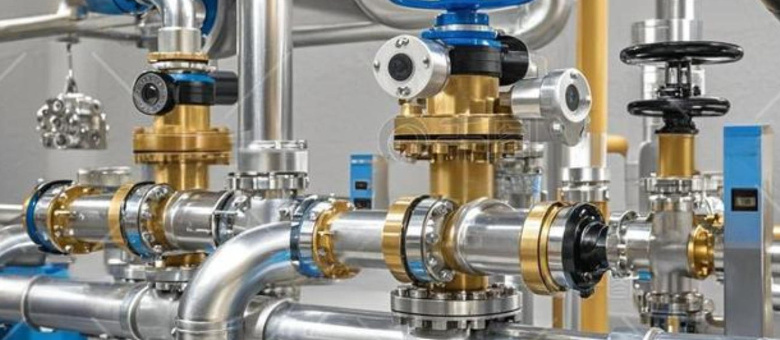

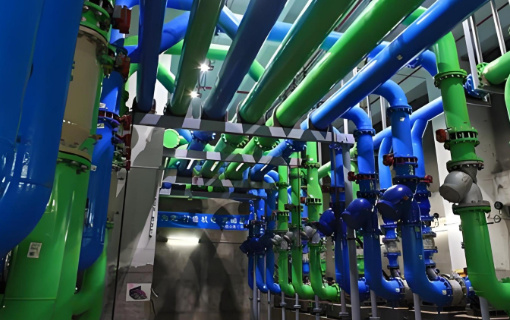

Industrial Equipment
Repair and Maintenance
*Not recommended for use in extreme high-temperature environments, highly corrosive chemical media, or ultra-high-purity oxygen systems.
Technical Parameters
| Scope | Thread Sealing Cord |
|---|---|
| Composition | Polyfiber thread with inert proprietary paste |
| Appearance | White color, coated wet cord |
| Odor | Slight, acrylic |
| Boiling Point | 150℃ |
| Specific Gravity | 1.25 g/m |
| Coating Weight | 0.54 to 0.74 g/m |
| Working Temperature | -30℃ to +149℃ |
| Working Pressure | ≤10,000 psi |
| Maximum Thread Size | 4'' |
| Length Tolerance | ±5% |
Specifications
| Series | Model | Market | Application | |
|---|---|---|---|---|
| Thread Sealing Cord | 20m | Global | Water supply and drainage, gas, compressed air, and industrial piping systems | Learn More |
| Thread Sealing Cord | 50m | Global | Water supply and drainage, gas, compressed air, and industrial piping systems | Learn More |
| Thread Sealing Cord | 150m | Global | Water supply and drainage, gas, compressed air, and industrial piping systems | Learn More |
| Thread Sealing Cord | 160m | Global | Water supply and drainage, gas, compressed air, and industrial piping systems | Learn More |
Why Choose ForeverSeal® Thread Sealing Cord
ForeverSeal® Thread Sealing Cord acts as smart alternative to PTFE Tape, provides faster installation and more reliable sealing.
| Comparison | ForeverSeal® PTFE Tape | ForeverSeal® Thread Sealing Cord |
|---|---|---|
| ✖Moderate | ✔High |
| ✖100–435 psi, depending on tape grade | ✔Up to 10,000 psi |
| ✖Moderate | ✔Excellent |
| ✖ForeverSeal® Industrial (ID) or Industrial Pro (IDP) is recommended | ✔Recommended |
| ✖May shred if poorly applied | ✔Clean application with no mess |
| ✖Easy | ✔Fast and easy |
| ✖Removable, but may leave some residue | ✔Clean and easy to remove |
*Installers with less experience can quickly master the use of thread sealing cord, effectively reducing leakage issues caused by incorrect wrapping techniques.

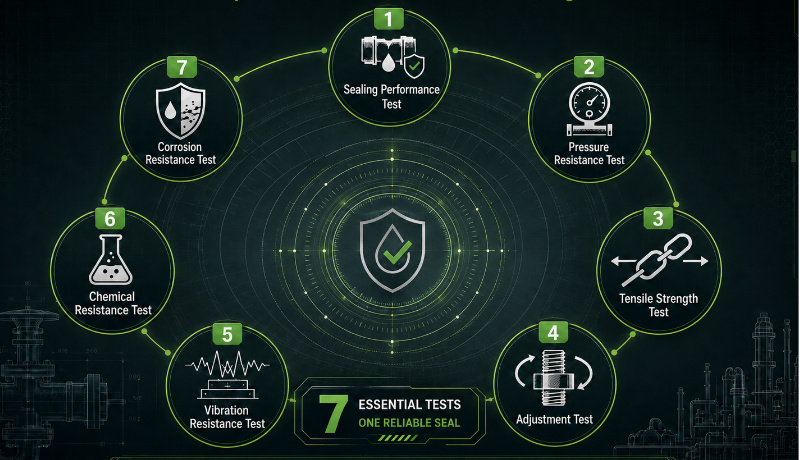

Long-Term Sealing Stability
- Sealing Performance Test
- Pressure Resistance Test
- Tensile Strength Test
- Adjustment Test
- Vibration Resistance Test
- Chemical Resistance Test
- Corrosion Resistance Test
Related Downloads
Working Principle
ForeverSeal® Thread Sealing Cord provides fast, clean, and reliable sealing for metal and plastic threaded connections.
The coated polyfiber cord fills thread gaps, seals immediately, and allows the joint to be adjusted by up to 45° after installation.

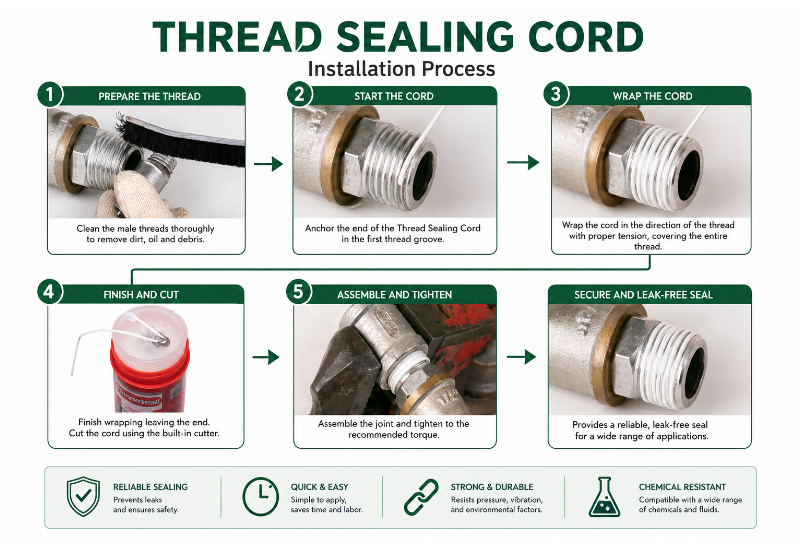

Installation Steps:
- 01
- Clean the male and female threads with a wire brush. Remove dirt, oil, rust, and old sealing material.
- 02
- Place the cord on the male thread, approximately two threads back from the pipe end.
- 03
- Wrap the cord evenly in the tightening direction. It is not necessary to follow the thread grooves.
- 04
- Apply the recommended number of wraps according to the thread size. Avoid using excessive cord.
- 05
- Cut the cord with the built-in cutter, then press the loose end firmly onto the thread.
- 06
- Assemble and tighten the fitting immediately. Adjust the joint by up to 45° if required.
Regarding maintenance and servicing: It ensures effective sealing while offering greater convenience and installation flexibility.
- The design philosophy behind the thread sealing cord is:Engineered for reliable, adjustable, and reusable thread sealing, it provides dependable sealing performance even under high-pressure conditions.
Frequently Asked Questions
- Does Thread Sealing Cord require curing time?No. The system can be pressurized and put into service immediately after installation.
- How much pressure can Thread Sealing Cord withstand?High-quality Thread Sealing Cord can withstand pressures up to 69 MPa (10,000 psi), depending on thread type and installation conditions.
- Can Thread Sealing Cord be used on plastic fittings?Yes. Thread Sealing Cord is suitable for both metal and plastic threaded fittings, making it ideal for a wide range of plumbing and industrial applications.
- What is the difference between Thread Sealing Cord and PTFE Tape?Thread Sealing Cord is easier to install, provides more consistent sealing performance, allows post-installation adjustment, and is less prone to tearing during application.
- What is the difference between Thread Sealing Cord and PTFE Tape?Thread Sealing Cord is easier to install, provides more consistent sealing performance, allows post-installation adjustment, and is less prone to tearing during application.
