Enhanced Chemically Inert PTFE Structure
Highly resistant to most acids, alkalis, and solvents.
Always On Duty
Engineered Like a Soldier. Tested Like a Guardian.
Home / ForeverSea ChemGuard PTFE Thread Seal Tape
ForeverSeal® ChemGuard PTFE Thread Seal Tape
Engineered for Chemical Processing, Corrosive Media & Industrial FluidsDesigned for Aggressive Chemicals, Solvents & High-Corrosion EnvironmentsBuilt for Long-Term Chemical Resistance & Leak-Free Integrity
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
Engineering-grade PTFE thread seal solutions specifically developed for chemically corrosive media and industrial fluid systems.
Engineering-grade PTFE thread seal solutions specifically developed for chemically corrosive media and industrial fluid systems.
It's not your average "corrosion-resistant tape," but a system-level sealing material designed for long-term operation in environments containing acids, alkalis, solvents, chemical media, and industrial fluids. In chemical systems, failure often isn't due to leakage, but rather: material corrosion, swelling and damage to the sealing layer, instability of the threaded structure, and system contamination caused by media penetration.ForeverSeal® ChemGuard has only one goal: to maintain structural stability and long-term seal integrity in extreme chemical environments.
Low-Permeation Sealing Barrier Design
Reduces the risk of chemical media migration along threaded connections.
Anti-Swelling & Anti-Degradation Structure
Maintains stability in long-term chemical contact environments.
Industrial-Grade Density Control
Prevents high-pressure chemical fluid extrusion (cold flow control).
Broad Media Compatibility
Suitable for a wide range of industrial chemical systems.
Additive-Free / Oil-Free / Silicone-Free
Guarantees zero oil, zero silicone, and zero additives to ensure pure performance.
Dual Thermal & Chemical Stability
Ensures stable performance under high temperatures and harsh chemical environments.
Application
ForeverSeal® UltraGas is designed for high-risk, high-purity gas systems.

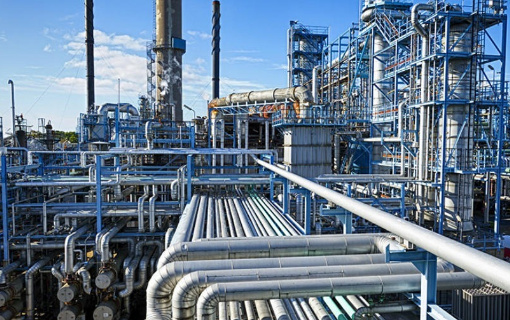

Chemical Production Piping Systems

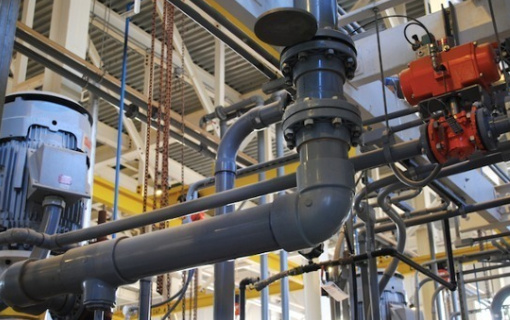

Acid/Alkali Transmission Pipelines

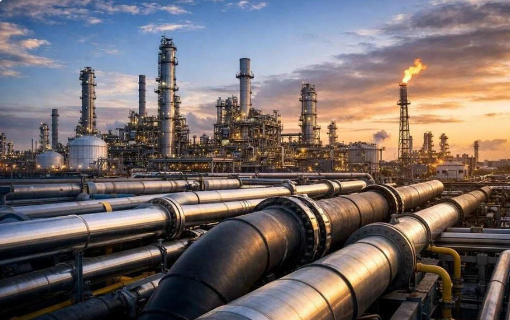

Petrochemical & Refining Industrial Pipelines

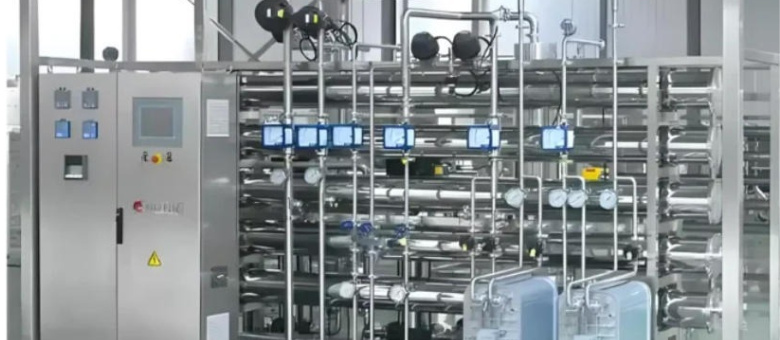

Industrial Waste Liquid Treatment Systems

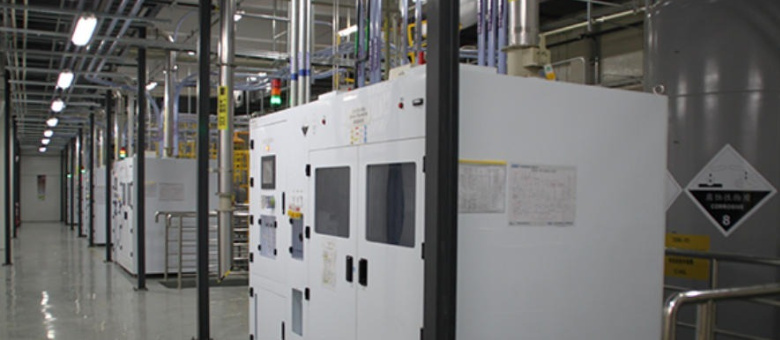

Laboratory Chemical Delivery Systems
*Not recommended for use in high-pressure oxygen systems or high-purity semiconductor gas systems. Please use UltraGas instead.
Technical Parameters
| Scope | ForeverSeal® ChemGuard (CG) |
|---|---|
| Material | 100% PTFE |
| Color | White |
| Lubricant | None |
| Width | 12mm (1/2''), 19mm (3/4''), 25mm (1'') |
| Thickness | 0.10 mm ±0.01 |
| Density | 1.0 g/cm³ |
| Tensile Strength | 10-17 MPa |
| Elongation | ≥50% |
| Maximum Working Pressure | ≤2.0 MPa |
| Temperature Range | -190℃ to +260℃ |
| Certifications | UL, DVGW, MIL-T-27730A |
Specifications
| Series | Model | Market | Application | Width (W) | Thickness (T) | Density (D) | Length (L) | |
|---|---|---|---|---|---|---|---|---|
| ChemGuard | UG-W12-T10-D10 | Global | Chemical Pipelines | 12mm | 0.10mm | 1.0g/cm³ | 480 inches (12 meters) |
Why ForeverSeal® ChemGuard ≠ Regular PTFE
| Comparison Projects | Ordinary PTFE Tape | ForeverSeal® ChemGuard |
|---|---|---|
| ✖Unstable | ✔Broad-spectrum chemical resistance |
| ✖Moderate | ✔High Stability |
| ✖Easily degraded | ✔Stable |
| ✖Weak | ✔Industrial-grade reinforced |
| General | ✔Low-permeation structure |
| General | ✔Chemical system dedicated |
*In chemical systems, material failure usually does not occur instantaneously, but rather through a process of "slow corrosion + latent failure".
Long-Term Sealing Stability
- Chemical Media Long-term Immersion Test
- Acid-Alkali Alternating Environment Test
- Organic Solvent Compatibility Test
- High-Temperature Chemical Cycling Test
- Thread Pressure Stability Test
- Material Structural Aging Analysis
Working Principle
ForeverSeal® PTFE Thread Seal Tape creates a tight mechanical seal at threaded gas connections.
When used correctly—starting from the root of the thread and maintaining a steady tension—the specially formulated polytetrafluoroethylene (PTFE) expands to fill tiny gaps, creating a leak-proof connection between the male and female threads.
Installation Steps:
- 01
- Clean the threads.
- 02
- Wind clockwise (tightening direction).
- 03
- Begin winding from the second turn.
- 04
- Tighten and overlap the winding as needed; the number of turns depends on the diameter (see specification guide).
- 05
- Compact the winding.
- 06
- Install immediately and tighten.
- 07
- Perform a leak test
In chemical systems, the real risk is not leakage, but chronic material failure.
The design logic of ChemGuard is:
- Resistance to chemical erosion.
- Control of medium permeation paths.
- Maintenance of long-term structural integrity.
- Reduction of maintenance frequency and downtime risk.
Frequently Asked Questions
- How should PTFE thread seal tape be applied to industrial threaded fittings?Learn the recommended preparation, wrapping direction and installation practices for reliable industrial threaded connections.
- Can PTFE thread seal tape be used for pneumatic and compressed air systems?Learn how PTFE thread seal tape is used on compatible threaded connections in pneumatic equipment and compressed air systems.
- What PTFE thread seal tape is suitable for industrial equipment?Learn how to select PTFE thread seal tape for industrial machinery, OEM equipment, valves, piping and threaded connections.
- Foreverseal® grey PTFE thread seal tape is designed for stainless steel and metal threaded connectioLearn about OEM, private label, specification customization and bulk supply options for industrial PTFE thread seal tape.
- Which PTFE tape is suitable for stainless steel and metal fittings?Explore PTFE thread seal tape options for stainless steel fittings, metal valves and industrial threaded connections.
Guide
Why choose ForeverSeal® GasSafe?
Because gas systems cannot tolerate any failures. ForeverSeal® GasSafe is designed specifically for gas pipeline applications, not a modification of generic PTFE tape. From material density and thickness to color-coded compliance and controlled manufacturing, every design parameter revolves around one goal: achieving a long-lasting, easily inspectable gas seal.
Explore More
Five Causes and Countermeasures for Gas Pipeline Seal Failure
Understand the five main causes of gas pipeline thread seal failure—and how GasSafe solves these problems. Most gas leaks are not caused by installers, but by the use of incorrect tape.
Explore More
Learn About xxx's Case Studies
ForeverSeal® GasSafe products are widely used in: residential gas pipeline installations, city gas distribution networks, commercial gas appliance connections, LPG and propane system components, and OEM-assembled gas equipment.
Explore MoreGet a PTFE Thread Seal Tape Quote and Technical Support
From samples to projects, from technology to delivery
PTFE Sealing for Critical Systems — No Guesswork, No Leakage Risk
Tell us your application—gas, water, chemical, oxygen, HVAC, or industrial systems—our engineers will recommend the right PTFE sealing solution based on your media,pressure, temperature, and compliance requirements.
Contact us today and receive:
- Application-Matched Technical Specifications & Certification Documents
(UL / DVGW / WRAS / AGA / MSDS / COA)
- Customized Pricing for Distributors, OEM Manufacturing & EPC Projects
- Sample Availability for Field Testing, Validation & Supplier Qualification
- Production Lead Time, MOQ, Packaging & Global Shipping Solutions
- Engineering Support for Product Selection, Replacement & Failure Analysis
- Manufacturing
- Full Name
- *Phone
From Product Evaluation to Long-Term Supply
Whether you are evaluating PTFE thread seal tape for industrial equipment, OEM assembly or piping systems, Foreverseal® supports your project with product selection, technical documentation, manufacturing capability and consistent supply.
Request Samples
Evaluate Foreverseal® pink, blue and grey industrial PTFE thread seal tapes for your equipment, piping or threaded connection requirements. Confirm the appropriate product specification before OEM production or bulk purchasing.
Request Samples
Download Technical Documents
Access product specifications, technical data, material information, test reports and supporting documents for product evaluation, engineering review and supplier qualification.
View Technical Documents
Become a Partner
Work with an experienced PTFE thread seal tape manufacturer for OEM, private label, industrial distribution, project supply and long-term cooperation.
Become a PartnerAlways On Duty
