Extreme Temperature Performance Design
Stable operation across a wide range of temperatures, from cryogenic to high-heat environments.
Always On Duty
Engineered Like a Soldier. Tested Like a Guardian.
Home / ForeverSeal Xtreme PTFE Thread Seal Tape

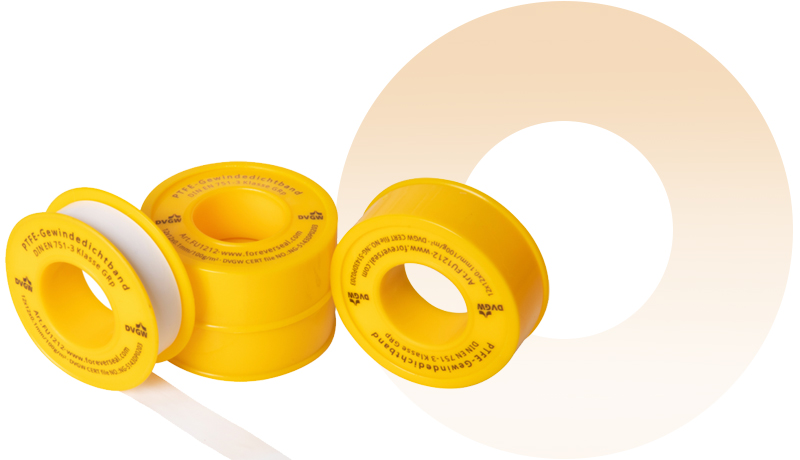

ForeverSeal® Xtreme PTFE Thread Seal Tape
Engineered for Extreme Temperature, Vacuum & Cryogenic SystemsDesigned for Sub-Zero, High-Heat & Vacuum Integrity ApplicationsBuilt for Mission-Critical Industrial & Scientific Environments
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
High-performance PTFE thread seal solutions developed for extreme temperatures, vacuum systems, and special industrial environments.
High-performance PTFE thread seal solutions developed for extreme temperatures, vacuum systems, and special industrial environments.
It's not a "reinforced tape," but rather a structural-grade sealing material system designed for: low-temperature/high-temperature/vacuum/extreme thermal cycling environments. In these environments, failure is typically not gradual, but rather involves: instantaneous leakage, material brittleness, seal instability, and vacuum system depressurization.ForeverSeal® Xtreme goal is to maintain structural stability and seal integrity under physical limits.
Vacuum Compatible Structure
Suitable for low-pressure differential and vacuum sealing systems.
Low Outgassing Design
Engineered to minimize volatile emissions.
Thermal Shock Resistance
Designed to withstand rapid temperature fluctuations.
High-Density PTFE Stable Structure
Prevents cold flow and creep failure under extreme conditions.
Reinforced Material Stability Formula
Formulated for superior long-term material stability.
Clean & Contamination-Free Structure
Oil-free, additive-free, and contaminant-free design for pure performance.
Application
ForeverSeal® Industrial is designed specifically for general industrial and maintenance systems.
Aerospace Testing Systems
Vacuum Experimental Systems
Ultra-low Temperature Freezing Systems

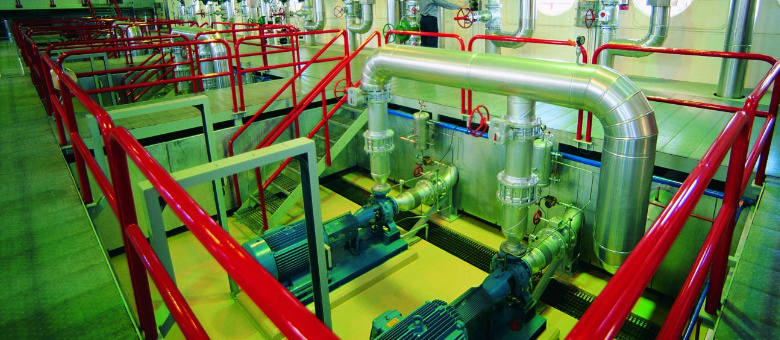

High-temperature Industrial Thermal Cycling Systems
Satellite Ground Testing Equipment
*Not recommended for use in ordinary water systems (Aqua) or routine industrial maintenance, to avoid wasting costs.
Technical Parameters
| Scope | ForeverSeal® Xtreme (XM) |
|---|---|
| Material | 100% PTFE |
| Color | White |
| Lubricant | None |
| Width | 12mm (1/2''), 19mm (3/4''), 25mm (1'') |
| Thickness | 0.10 mm ±0.01 |
| Density | 1.2~1.5 g/cm³ |
| Tensile Strength | 10-17 MPa |
| Elongation | ≥50% |
| Maximum Working Pressure | ≤2.0 MPa |
| Temperature Range | -190℃ to +260℃ |
| Certifications | UL, DVGW, MIL-T-27730A |
Specifications
| Series | Model | Market | Application | Width (W) | Thickness (T) | Density (D) | Length (L) | |
|---|---|---|---|---|---|---|---|---|
| Xtreme | XM-W12-T10-D15 | Global | Extreme Environment Pipelines | 12mm | 0.10mm | 1.0g/cm³ | 480 inches (12 meters) |
Why ForeverSeal® Industrial ≠ Regular PTFE
| Comparison | Ordinary PTFE Tape | ForeverSeal® Xtreme |
|---|---|---|
| ✖Cracks easily | ✔Stays strong in the cold |
| ✖Fails under heat | ✔Stable & leak-free |
| ✖Seals poorly | ✔Perfect for vacuum |
| ✖Loosens easily | ✔Reliable in cycling |
| ✖Deforms easily | ✔Keeps its shape |
| ✖General tasks only | ✔For extreme systems |
*In extreme environments, materials are not a “performance issue” but a “system safety boundary issue.”
Long-Term Sealing Stability
- Deep Cryogenic Cycling Test
- High-Temperature Thermal Shock Test
- Vacuum Integrity Test
- Low Outgassing Test
- High Differential Pressure Stability Test
- Long-term Material Creep Test
Related Downloads
Working Principle
ForeverSeal® PTFE Thread Seal Tape creates a tight mechanical seal at threaded gas connections.
When used correctly—starting from the root of the thread and maintaining a steady tension—the specially formulated polytetrafluoroethylene (PTFE) expands to fill tiny gaps, creating a leak-proof connection between the male and female threads.
Installation Steps:
- 01
- Clean the threads.
- 02
- Wind clockwise (tightening direction).
- 03
- Begin winding from the second turn.
- 04
- Tighten and overlap the winding as needed; the number of turns depends on the diameter (see specification guide).
- 05
- Compact the winding.
- 06
- Install immediately and tighten.
- 07
- Perform a leak test
In extreme engineering systems: failure is not a cost issue, but a system-level risk.
- Xtreme's design logic: maintaining material structural stability, withstanding extreme temperature shocks, adapting to vacuum and low-pressure environments, and reducing unpredictable risks.
Frequently Asked Questions
- How should PTFE thread seal tape be applied to industrial threaded fittings?Learn the recommended preparation, wrapping direction and installation practices for reliable industrial threaded connections.
- Can PTFE thread seal tape be used for pneumatic and compressed air systems?Learn how PTFE thread seal tape is used on compatible threaded connections in pneumatic equipment and compressed air systems.
- What PTFE thread seal tape is suitable for industrial equipment?Learn how to select PTFE thread seal tape for industrial machinery, OEM equipment, valves, piping and threaded connections.
- Foreverseal® grey PTFE thread seal tape is designed for stainless steel and metal threaded connectioLearn about OEM, private label, specification customization and bulk supply options for industrial PTFE thread seal tape.
- Which PTFE tape is suitable for stainless steel and metal fittings?Explore PTFE thread seal tape options for stainless steel fittings, metal valves and industrial threaded connections.
Guide
Why choose ForeverSeal® GasSafe?
Because gas systems cannot tolerate any failures. ForeverSeal® GasSafe is designed specifically for gas pipeline applications, not a modification of generic PTFE tape. From material density and thickness to color-coded compliance and controlled manufacturing, every design parameter revolves around one goal: achieving a long-lasting, easily inspectable gas seal.
Explore More
Five Causes and Countermeasures for Gas Pipeline Seal Failure
Understand the five main causes of gas pipeline thread seal failure—and how GasSafe solves these problems. Most gas leaks are not caused by installers, but by the use of incorrect tape.
Explore More
Learn About xxx's Case Studies
ForeverSeal® GasSafe products are widely used in: residential gas pipeline installations, city gas distribution networks, commercial gas appliance connections, LPG and propane system components, and OEM-assembled gas equipment.
Explore MoreGet a PTFE Thread Seal Tape Quote and Technical Support
From samples to projects, from technology to delivery
PTFE Sealing for Critical Systems — No Guesswork, No Leakage Risk
Tell us your application—gas, water, chemical, oxygen, HVAC, or industrial systems—our engineers will recommend the right PTFE sealing solution based on your media,pressure, temperature, and compliance requirements.
