Industrial-Grade Standard PTFE Structure
Meets general industrial sealing performance requirements.
Always On Duty
Engineered Like a Soldier. Tested Like a Guardian.
Home / ForeverSeal Industrial PTFE Thread Seal Tape
ForeverSeal® Industrial PTFE Thread Seal Tape
Engineered for Steam, Air, Oil & General Industrial SystemsReliable Sealing for Everyday Industrial Maintenance & Utility ApplicationsBuilt for Stable Performance in Standard Pressure & Temperature Conditions
Features
Applications
Technical Parameters
Specifications
Related Downloads
Working Principle
Guide
Features
Engineering-grade PTFE thread seal solutions for general industrial systems and basic engineering applications.
Engineering-grade PTFE thread seal solutions for general industrial systems and basic engineering applications.
It's not a "special-condition material," but rather a high-reliability standard industrial sealing product specifically designed for: steam/compressed air/industrial oil circuits/general fluid systems. In industrial settings, most sealing needs aren't extreme, but the challenges lie in: frequent equipment maintenance, long-term system vibration, low-to-medium pressure cyclic operation, and the use of mixed materials across multiple applications.ForeverSeal® Industrial goal is to provide a stable, predictable, and low-failure-rate standardized solution for industrial-grade seals.
Anti-Vibration Stability Design
Suitable for dynamic environments such as air compressors and pump systems.
Medium-High Temperature Tolerance
Suitable for steam and thermal cycling systems.
Broad Media Compatibility
Compatible with air, water, oil, and light industrial fluids.
High-Density Control
Ensures reliable and secure sealing performance.
Color-Coded Selection
Available in blue, pink, and gray to suit various application scenarios.
Additive-Free Formulation
Oil-free, silicone-free, and additive-free to ensure a clean performance without contamination.
Multi-Specification Coverage
Comprehensive sizing range adapted to the requirements of the maintenance market.
Application
ForeverSeal® Industrial is designed specifically for general industrial and maintenance systems.

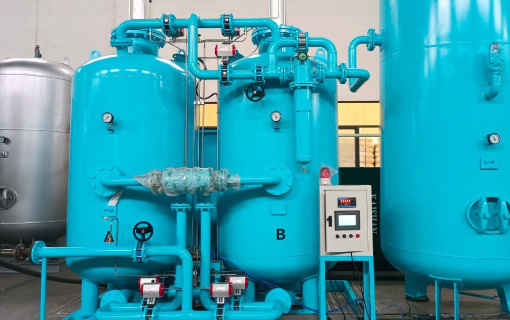

Factory Compressed Air Systems

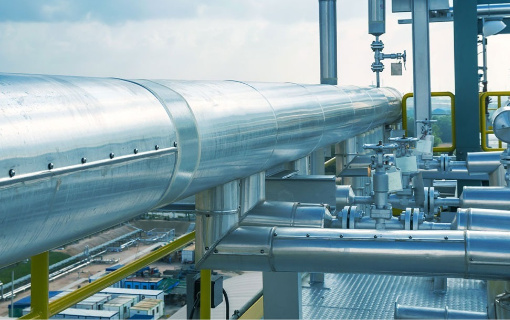

Low & Medium Pressure Steam Systems

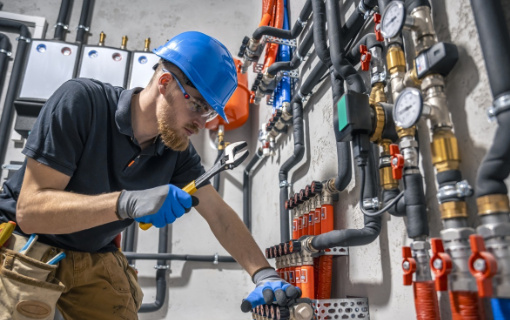

Equipment Repair & Pipeline Maintenance

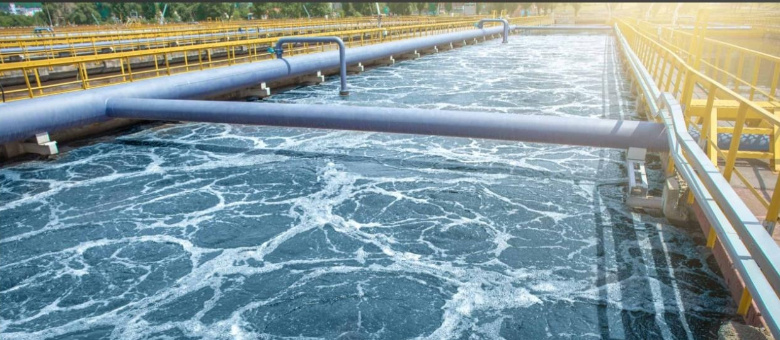

Industrial Water Supply & Drainage Systems

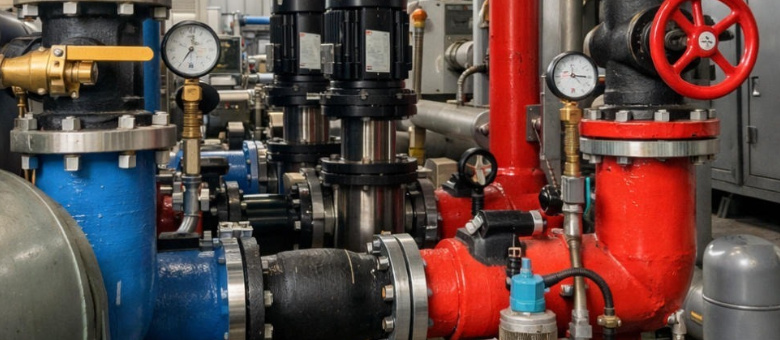

HVAC Auxiliary Piping Systems
*Not recommended for use with high-purity gases (UltraGas), corrosive chemical media (ChemGuard), or gas safety systems (GasSafe).
Technical Parameters
| Scope | ForeverSeal® Industrial (ID) | ForeverSeal® Industrial Pro (IDP) |
|---|---|---|
| Material | Min. 99% PTFE, Max. 1% Pigment | Min. 99% PTFE, Max. 1% Pigment |
| Color | Pink or Blue | Gray |
| Lubricant | None | None |
| Width | 12mm (1/2''), 19mm (3/4''), 25mm (1'') | 12mm (1/2''), 19mm (3/4''), 25mm (1'') |
| Thickness | 0.10 mm ±0.01 | 0.10 mm ±0.01 |
| Density | 1.0 g/cm³ | 1.0 g/cm³ |
| Tensile Strength | 10-17 MPa | 10-17 MPa |
| Elongation | ≥50% | ≥50% |
| Maximum Working Pressure | ≤2.0 MPa | ≤2.0 MPa |
| Temperature Range | -190℃ to +260℃ | -190℃ to +260℃ |
| Certifications | UL, MIL-T-27730A | UL, MIL-T-27730A |
Specifications
| Series | Model | Market | Application | Width (W) | Thickness (T) | Density (D) | Length (L) | |
|---|---|---|---|---|---|---|---|---|
| Industrial | ID-W12-T10-D10 | Global | Industrial Pipelines | 12mm | 0.10mm | 1.0g/cm³ | 480 inches (12 meters) | |
| Industrial Pro | IDP-W12-T10-D10 | Global | Stainless Steel Pipelines | 12mm | 0.10mm | 1.0g/cm³ | 480 inches (12 meters) |
Why ForeverSeal® Industrial ≠ Regular PTFE
| Comparison Projects | Ordinary PTFE Tape | ForeverSeal® Industrial |
|---|---|---|
| ✖Low | ✔Standardized Control |
| ✖General | ✔Professional Optimization |
| ✖Easy to loosen | ✔Anti-vibration design |
| ✖Low | ✔Industrial-grade stability |
| ✖General | ✔Standard installation experience |
| ✖High | ✔Lower |
*The problem in industrial settings is not "whether it can be used," but "how long before it breaks down."
Long-Term Sealing Stability
- Steam Cycling Pressure Test
- Air Compressor System Vibration Test
- Thermal/Cold Cycling Stability Test
- Medium Pressure Sealing Retention Test
- Industrial Oil Media Compatibility Test
- Long-term Thread Loosening Simulation Test
Related Downloads
Working Principle
ForeverSeal® PTFE Thread Seal Tape creates a tight mechanical seal at threaded gas connections.
When used correctly—starting from the root of the thread and maintaining a steady tension—the specially formulated polytetrafluoroethylene (PTFE) expands to fill tiny gaps, creating a leak-proof connection between the male and female threads.
Installation Steps:
- 01
- Clean the threads.
- 02
- Wind clockwise (tightening direction).
- 03
- Begin winding from the second turn.
- 04
- Tighten and overlap the winding as needed; the number of turns depends on the diameter (see specification guide).
- 05
- Compact the winding.
- 06
- Install immediately and tighten.
- 07
- Perform a leak test
In industrial systems, the biggest cost is not the material, but "downtime".
The design goal of Industrial is:
- Reduce maintenance frequency.
- Improve system stability.
- Reduce construction complexity.
- Provide standardized replacement solutions.
Frequently Asked Questions
- How should PTFE thread seal tape be applied to industrial threaded fittings?Learn the recommended preparation, wrapping direction and installation practices for reliable industrial threaded connections.
- Can PTFE thread seal tape be used for pneumatic and compressed air systems?Learn how PTFE thread seal tape is used on compatible threaded connections in pneumatic equipment and compressed air systems.
- What PTFE thread seal tape is suitable for industrial equipment?Learn how to select PTFE thread seal tape for industrial machinery, OEM equipment, valves, piping and threaded connections.
- Foreverseal® grey PTFE thread seal tape is designed for stainless steel and metal threaded connectioLearn about OEM, private label, specification customization and bulk supply options for industrial PTFE thread seal tape.
- Which PTFE tape is suitable for stainless steel and metal fittings?Explore PTFE thread seal tape options for stainless steel fittings, metal valves and industrial threaded connections.
Guide
Why choose ForeverSeal® GasSafe?
Because gas systems cannot tolerate any failures. ForeverSeal® GasSafe is designed specifically for gas pipeline applications, not a modification of generic PTFE tape. From material density and thickness to color-coded compliance and controlled manufacturing, every design parameter revolves around one goal: achieving a long-lasting, easily inspectable gas seal.
