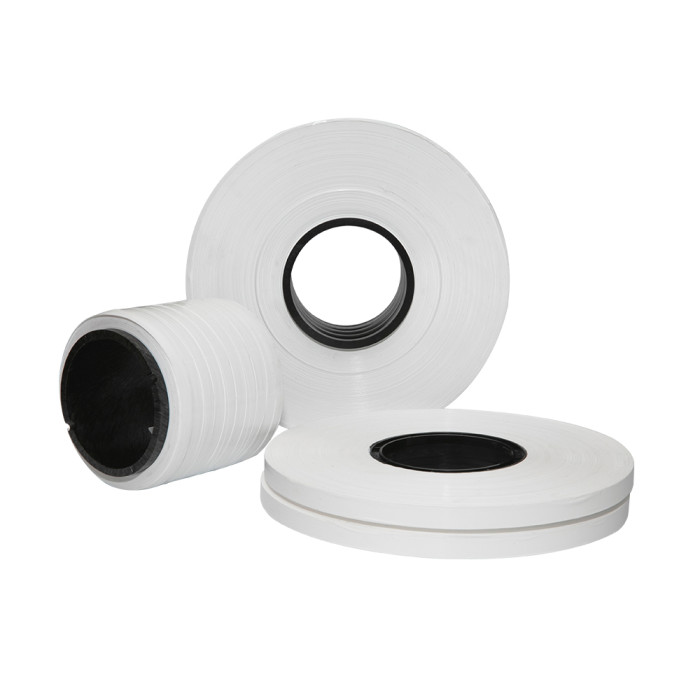

eptfe tape for Low density flexible low loss cable microwave coaxial cable






Detail Information
FEATURES
Low density ePTFE FILM
low density eptfe tape for flexible low loss cable microwave coaxial cable insulation、binder tape in cable consructions.
Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
l Technical Data for low density ePTFE FILM:
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
Production Center/aboutus.htm
PTFE material record
Calender control
ePTFE FILM cutting
Main work shop
Where do we use our ePTFE FILM
