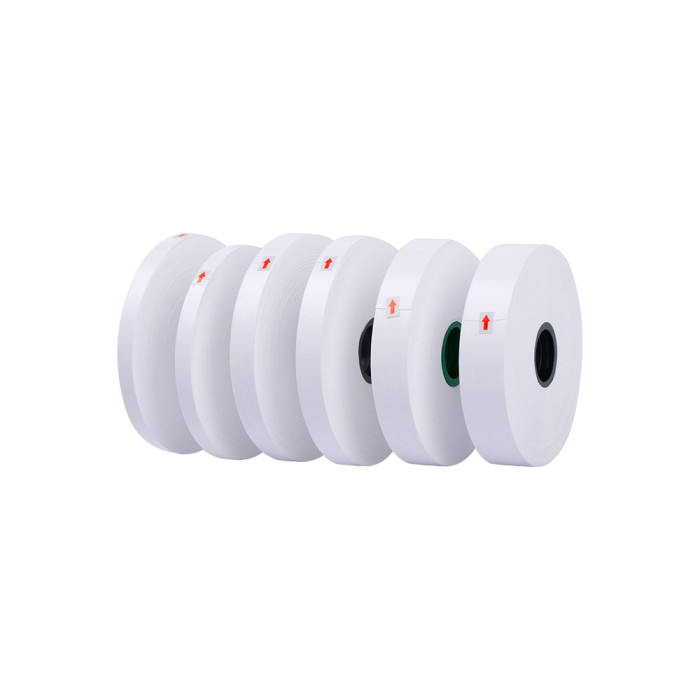

Expanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical field

Expanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical field
Expanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical fieldExpanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical fieldExpanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical fieldExpanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical fieldExpanded PTFE tape for high frequency microwave coaxial cable applications in Miltarty and medical field
CategoriesLow Density PTFE Films
BrandForeverseal PTFE Tapes Manufacturer
ModelFS12-LD
Brand & LogoForeverseal
Busniess typeManufacturer
MaterialPTFE(Polytetrafluorethylene)
Specification0.50g/cm3 - 0.90g/cm3
Colorred yellow black...
Width4-200mm
Thickness50mm - 254mm
FOB portShanghai/Ningbo
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeApr 21,2024
Detail Information
FEATURES

LOW DENSITY (ePTFE) FILM & TAPE

Low density PTFE film & tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.

It's lightsoftflame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.

l  Technical Data for low density unsintered ptfe tape:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
0.50g/cm3 - 0.90g/cm3
     TENSILE STRENGTH         (minimum)
12MPa
         ELONGATION            (minimum)
50%

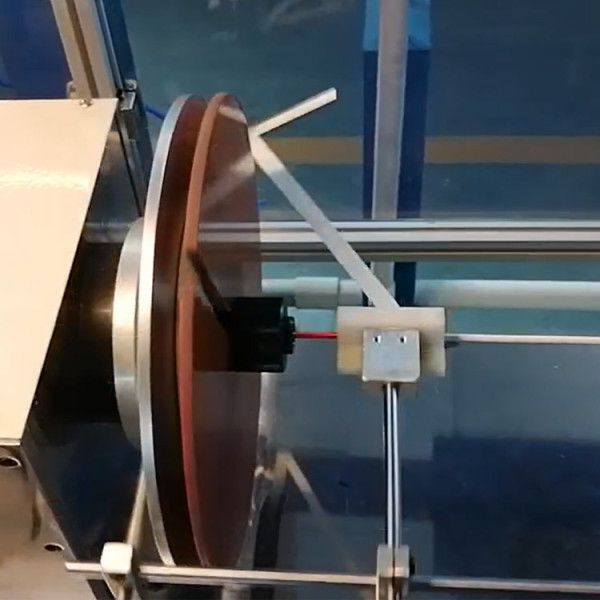

Production Center
Features & Applications

    ·   High temperature and chemical resistance

 · Flammability resistivity

 ·    High porosity results in superior dielectric properties

    ·    High tensile strengths that support fast wrapping speeds

    ·    Long joint free lengths

    ·    RoHS and REAH compliant

Where do we use our ePTFE FILM

· Wire and cable insulation for extreme chemical and thermal environments

· Binder tape in cable constructions and wire harnesses

· Dielectric material in coaxial cables

· Convoluted hose constructions

· And more
