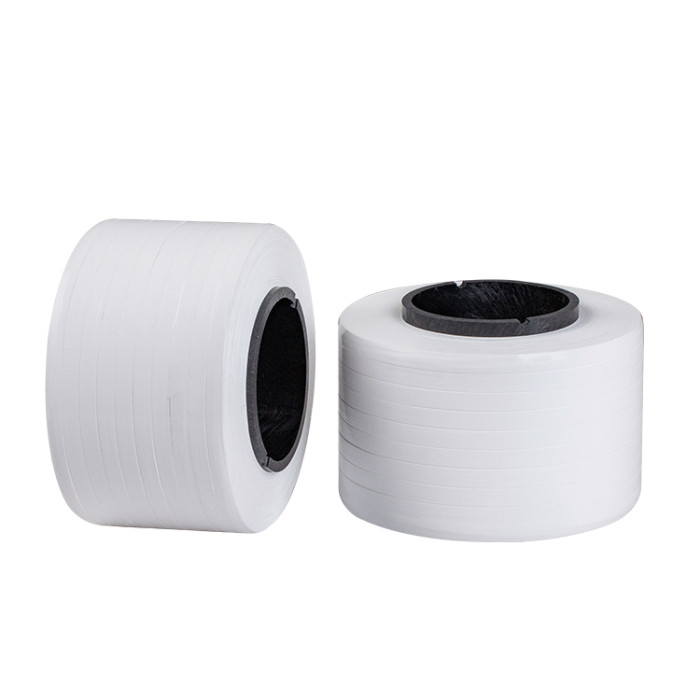

PTFE tape for MIL-spec coaxial cable

PTFE tape for MIL-spec coaxial cable
PTFE tape for MIL-spec coaxial cablePTFE tape for MIL-spec coaxial cablePTFE tape for MIL-spec coaxial cablePTFE tape for MIL-spec coaxial cablePTFE tape for MIL-spec coaxial cable
CategoriesLow Density PTFE Films
BrandForeverseal PTFE Tapes Manufacturer
ModelFS19-LD
Brand & Logo:Foreverseal
Busniess type:Manufacturer
Material:PTFE
Specification:1.60g/cm3
Color:red yellow black...
FOB portShanghai/Ningbo
Terms of PaymentL/C, T/T
Download
Update TimeDec 6,2024
Detail Information
FEATURES
Low density ePTFE FILM

Low density Unsintered PTFE tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.

It's lightsoftflame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.



l  Technical Data for low density unsintered ptfe tape:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
0.50g/cm3 - 0.90g/cm3
     TENSILE STRENGTH         (minimum)
12MPa
         ELONGATION            (minimum)
50%
Production Center/aboutus.htm
PTFE material  record
 Calender control
ePTFE FILM cutting

Main work shop

Where do we use our ePTFE FILM
Medical equipment
Robot

Military/defense
 Radar
