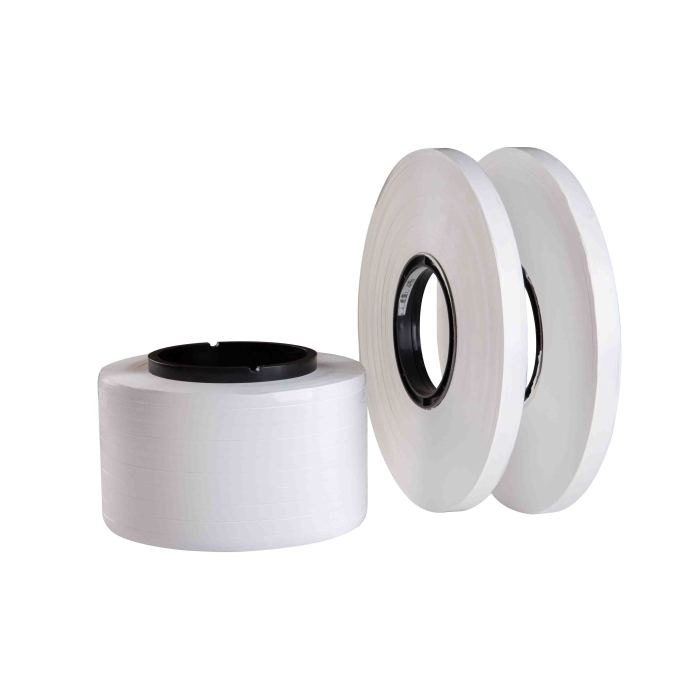

ePTFE Cable Film with Low Dielectric Coinstant for Coaxial Cables

ePTFE Cable Film with Low Dielectric Coinstant for Coaxial Cables
ePTFE Cable Film with Low Dielectric Coinstant for Coaxial CablesePTFE Cable Film with Low Dielectric Coinstant for Coaxial CablesePTFE Cable Film with Low Dielectric Coinstant for Coaxial CablesePTFE Cable Film with Low Dielectric Coinstant for Coaxial CablesePTFE Cable Film with Low Dielectric Coinstant for Coaxial Cables
CategoriesLow Density PTFE Films
BrandForeverseal PTFE Tapes Manufacturer
ModelFS12-LD
Brand & Logo:Foreverseal
Busniess type:Manufacturer
Material:PTFE
Specification:0.90g/cm3
Color:nature
FOB portShanghai/Ningbo
Terms of PaymentL/C, T/T
Download
Update TimeOct 12,2024
Detail Information
FEATURES

HIGH DENSITY (ePTFE) FILM & TAPE

High density PTFE films/tapes provide superior electrical and chemical of the standard serious. High density PTFE films/tapes are recommended in highly critical military and aerospace,to high demand general industrial.

l  Technical Data for low density unsintered ptfe tape:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
1.60g/cm3
     TENSILE STRENGTH         (minimum)
15MPa
         ELONGATION            (minimum)
150%
Production Center
Features & Applications

    ·   High temperature and chemical resistance

 · Flammability resistivity

 ·    High porosity results in superior dielectric properties

    ·    High tensile strengths that support fast wrapping speeds

    ·    Long joint free lengths

    ·    RoHS and REAH compliant

Where do we use our ePTFE FILM

· Wire and cable insulation for extreme chemical and thermal environments

· Binder tape in cable constructions and wire harnesses

· Dielectric material in coaxial cables

· Convoluted hose constructions

· And more
