Unsintered PTFE cable wrapping tape for high temperature rsistance wires and cables

Can't find what you are looking for?Professional salesperson help you determine the right products for your application
Please send your message to us

Unsintered PTFE cable wrapping tape for high temperature rsistance wires and cables

Unsintered PTFE cable wrapping tape for high temperature rsistance wires and cables
Unsintered PTFE cable wrapping tape for high temperature rsistance wires and cablesUnsintered PTFE cable wrapping tape for high temperature rsistance wires and cablesUnsintered PTFE cable wrapping tape for high temperature rsistance wires and cablesUnsintered PTFE cable wrapping tape for high temperature rsistance wires and cablesUnsintered PTFE cable wrapping tape for high temperature rsistance wires and cables
CategoriesHigh Density PTFE Films
BrandForeverseal PTFE Tapes Manufacturer
ModelFS18-H
Brand & Logo:Foreverseal
Busniess type:Manufacturer
Material:PTFE
Specification:1.60g/cm3
FOB portShanghai/Ningbo
Terms of PaymentL/C, T/T
Download DOCpdf icon
Update TimeNovember 30,2022
Detail Information
FEATURES
High density PTFE FILM

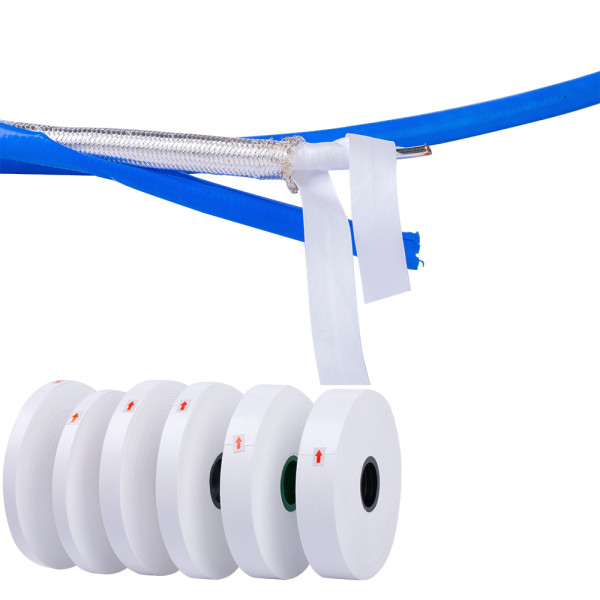

Unsintered PTFE cable wrapping tape,it's high density PTFE films for RF low loss microwave flexible cable shielding.

High density PTFE FILM provide superior electrical and chemical of the standard serious. High density PTFE films/tapes are recommended in highly critical military and aerospace,to high demand general industrial.

l  Technical Data for High density PTFE FILM:
THICKNESS
0.051mm
0.076mm
0.102mm
0.127mm
0.152mm
0.203mm
0.254mm
TOLERANCE
+/-0.005
+/-0.005
+/-0.006
+/-0.0076
+/-0.0076
+/-0.01
+/-0.01
WIDTH
4mm - 200mm
DENSITY
1.60g/cm3
     TENSILE STRENGTH         (minimum)
10MPa
         ELONGATION            (minimum)
50%
Production Center/aboutus.htm
PTFE material  record
 Calender control

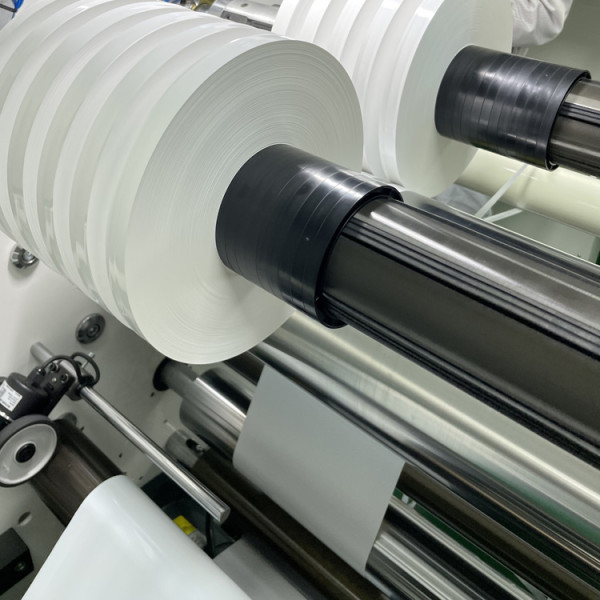

ePTFE FILM cutting

Main work shop

Where do we use our PTFE FILM
Medical equipment
Robot

Military/defense
 Radar
